Top quality ASTM B232 standard overhead bare ACSR Penguin ACSR Conductor

Top quality ASTM B232 standard overhead bare ACSR Penguin ACSR Conductor

APPLICATIONS: ACSR has the established reputation for economy and dependability in power transmission lines. Also used for primary and secondary distribution lines. Wide range of steel content from 7% to 40% can be achieved by different stranding, to meet desired strength. Electrical losses by corona effect are greatly reduced, due to the larger diameter size of this design. Economical transmission and distribution of electrical energy can be achieved by ACSR, at very high voltages and distances.

SPECIFICATIONS: ACSR Aluminum Conductors Steel Reinforced for High Voltage (HV) and Medium Voltage (MV) Transmission Overhead Lines are usually manufactured according to ASTM B232, BS 3242, DIN 48204, TS IEC 1089

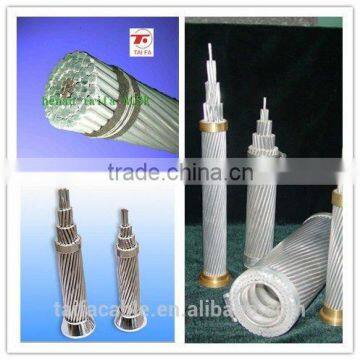

CONSTRUCTION: ACSR is a composite concentric-lay-stranded conductor. Galvanized steel strand or strands form the central core of the conductor, around which is stranded one or more layers of EC Grade Aluminium wires. The steel core may consist of a single strand or a concentric stranded cable of 7, 19, 37, or more wires. Numerous combinations of aluminum and steel strands and layers are possible.

FEATURES AND BENEFITS:

ACSR conductors are recognized for their record of economy, dependability and favorable strength / weight ratio. ACSR conductors combine the light weight and good conductivity of aluminum with the high tensile strength and ruggedness of steel. In line design, this can provide higher tensions, less sag, and longer span lengths than obtainable with most other types of overhead conductors. The steel strands are added as mechanical reinforcements. The cross sections above illustrate some common stranding. The steel core wires are protected from corrosion by galvanizing.

Type Description Application standard LJ Aluminium stranded wire (A.A.C) GB 1179-1983 LGJ Aluminium conductor steel-reinforeed (ACSR) GB 1179-1983 LHA1J Aluminium alloy stranded wire (AAAC or AASC) GB 9329 LHA2J Aluminium alloy stranded wire (AAAC or AASC) GB 9329 JL Aluminium stranded wire (A.A.C) GB 9329 JL/G1A Aluminium conductor steel-reinforeed (ACSR) GB 9329 JLHA1 Aluminium alloy stranded wire (AAAC or AASC) GB 1179-1999 JLHA2 Aluminium alloy stranded wire (AAAC or AASC) GB 1179-1999 TJ Bare copper stranded wire GB 1179-1999

Note:

We can design and manufacture wires & cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, as well as Africa, Middle East, South-east Asia, South America,Central America,North America, Europe ,Australia and so on. Welcome your OEM and ODM orders.

Our main products are as follows:

1)Bare Conductor ,such as AAC,AAAC,ACSR,ACAR,AACSR,ACSR/AW and so on;

2)Aerial Bundled Cable (1kV-35kV ),such as Duplex,Triplex,Quadruplex Drop Wires and so on;

3)PVC Insulated (Flexible ) Wire ;

4) PVC Insulated and Sheathed (Armoured) Power Cable;

5)Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable;

6)Welding Cable, Control Cable, Concentric Cable, Rubber Sheathed Cable and so on;

ACSR Penguin ASTM B 232 Conductor
