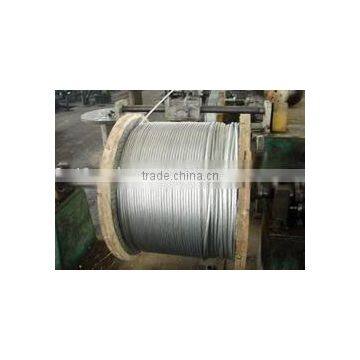

Aluminium Conductor Steel Reinforced / ACSR AAC Bare Cable
- Qingdao
- T/T L/C D/P D/A
You May Like
-
ACSS/AS(aluminum conductors-aluminum clad steel supported)
-
A.A.C CONDUCTORS /bare overhead cable wire
-
ACSR/TW (shaped wire aluminum conductor, steel reinforced)
-
AAC Conductor(DIN48201 All Aluminium Conductor wire)
-
high voitage bare ACAR (Aluminium Conductor, Alloy Reinforced) wire
-
heat-resistant BARE AAC Braided Cable (manufacture) for overhead line
Product Details
| Place of Origin | Henan, China | Brand Name | Taifa | |
| Model Number | ACSR AAC AAAC etc. | Insulation Material | Other, bare | |
| Type | Low Voltage | Application | Construction | |
| Conductor Material | Aluminum | Jacket | Other, bare |
Product Description
Specification:
Aluminium Conductor Steel Reinforced/ACSR/AAC Bare Cable :
PRODUCT FEATURES:
ACSR bare conductors are used for overhead high tension power transmission lines with long spans. ACSR offers optimal strength for line designs. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
ACSR conductors provide dependable performance for many years under adverse weather conditions. The combination of the aluminum and steel in the conductor design offer both efficient conductivity and high tensile strength making ACSR cable the most economical solution for over head power transmission and distribution projects.
STANDARD:
Construction as per ASTM B230, ASTM B232, ASTM B498 and B500, BS 215 Part 2, CSA C49, DIN 48204, NFC 34120;
MANUFACTURING AND TESTS:
All mechanical and electrical properties according to specifications IEC209 and IEC1089.
TECHNICAL SPECIFICATIONS AS FOLLOWS:
ASTM B232
Code Name | Area | Stranding & Dia. | Approximate Overall Dia. | Linear Mass | Rated Tensile Strength | Max. D.C. Resistance at 20 Ω/km | ||||||
Aluminum | Steel | Total | Aluminum | Steel | Aluminum | Steel | Total | |||||
AWG or MCM | mm2 | mm2 | mm2 | mm | mm | mm | Kg/km | Kg/km | Kg/km | daN | ||
Chickadee | 397.500 | 201.42 | 11.16 | 212.58 | 18/3.77 | 1/3.77 | 18.85 | 555 | 87 | 642 | 4399 | 0.1431 |
Pheasant | 1272 | 644.51 | 81.63 | 726.19 | 54/3.90 | 19/2.34 | 35.10 | 1795 | 638 | 2433 | 19400 | 0.04516 |
DIN 48204
Area | Stranding & Dia. | Approximate Overall Dia. | Linear Mass | Rated Tensile Strength | Max. D.C. Resistance at 20 Ω/km | |||||||
Nominal | Actual | Aluminum | Steel | Total | ||||||||
Al/Steel mm2 | Al mm2 | Steel mm2 | Total mm2 | Aluminum mm | Steel mm | mm | Kg/km | Kg/km | Kg/km | daN | ||
95/15 | 94.4 | 15.3 | 109.7 | 26/2.15 | 7/1.67 | 13.6 | 260 | 123 | 383 | 3575 | 0.3058 | |
120/20 | 121.06 | 19.8 | 141.4 | 26/2.44 | 7/1.90 | 15.5 | 336 | 158 | 494 | 4565 | 0.2374 | |
Package and Delivery
wooden drums seaworthy or according to your requirements
delivery within 15 working days
Contact Us
- Henan Taifa Cable Co., Ltd.
- Contact namejia jia Chat Now
- Phone86-371-68626008
- AddressEast Section Of Shunyuan Road, Industry Technology Park
