Overhead bare Conductor AAAC conductor wire (BS EN50182)
- Qingdao
- T/T L/C D/P D/A
You May Like
-
super thermal-resistant aluminum-alloy conductor invar-reinforced Cable(ACSR conductor)
-
Bare Conductors/ACSR,AAC,AAAC overhead Conductor/Aluminum Conductor
-
STACIR/AW Transmission Conductor super themal-resistant aluminum conductor overhead wire
-
AAAC bare conductor (All Aluminium Alloy Conductor)
-
ACAR (aluminum conductor alloy reinforced )
-
Bare AAAC overhead electrical wire All Aluminum Alloy Conductor
Product Details
| Place of Origin | Henan, China | Brand Name | TAIFA | |
| Model Number | AAAC | Type | Bare | |
| Application | Overhead | Conductor Material | Aluminum | |
| Conductor Type | Stranded | Insulation Material | Other, bare |
Product Description
Specification:

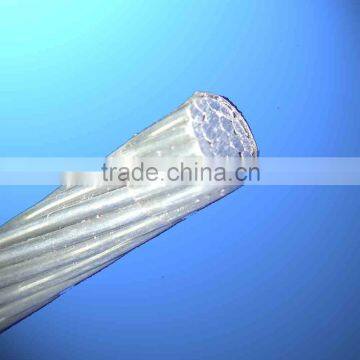

Bare Conductor AAAC conductor(BS EN50182)
1). Standard: BS EN50182
2). Specification: AAAC are composed by bare concentric-lay-stranded aluminum alloy wires.
3). Application: AAAC are used in overhead electric power transmission and distribution lines.
The data sheets below show partial AAAC technical characters based on standard BS EN50182:
Code | Old code | Area | No.of wires | Diameter | Mass per unit length | Rated strength | DC resistance | |
mm2 | Wire | Cond. | KN | Ω/km | ||||
mm | mm | |||||||
19-Al3 | BOX | 18.8 | 7 | 1.85 | 5.55 | 51.4 | 5.55 | 1.7480 |
24-Al3 | ACACIA | 23.8 | 7 | 2.08 | 6.24 | 64.9 | 7.02 | 1.3828 |
30-Al3 | ALMOND | 30.1 | 7 | 2.34 | 7.02 | 82.2 | 8.88 | 1.0926 |
35-Al3 | CEDAR | 35.5 | 7 | 2.54 | 7.62 | 96.8 | 10.46 | 0.9273 |
42-Al3 | DEODAR | 42.2 | 7 | 2.77 | 8.31 | 115.2 | 12.44 | 0.7797 |
48-Al3 | FIR | 47.8 | 7 | 2.95 | 8.85 | 130.6 | 14.11 | 0.6875 |
60-Al3 | HAZEL | 59.9 | 7 | 3.30 | 9.90 | 163.4 | 17.66 | 0.5494 |
72-Al3 | PINE | 71.6 | 7 | 3.61 | 10.8 | 195.6 | 21.14 | 0.4591 |
84-Al3 | HOLLY | 84.1 | 7 | 3.91 | 11.7 | 229.5 | 24.79 | 0.3913 |
90-Al3 | WILLOW | 89.7 | 7 | 4.04 | 12.1 | 245.0 | 26.47 | 0.3665 |
119-Al3 | OAK | 118.9 | 7 | 4.65 | 14.0 | 324.5 | 35.07 | 0.2767 |
151-Al3 | MULBERRY | 150.9 | 19 | 3.18 | 15.9 | 414.3 | 44.52 | 0.2192 |
181-Al3 | ASH | 180.7 | 19 | 3.48 | 17.4 | 496.1 | 53.31 | 0.1830 |
211-Al3 | ELM | 211.0 | 19 | 3.76 | 18.8 | 579.2 | 62.24 | 0.1568 |
239-Al3 | POPLAR | 239.4 | 37 | 2.87 | 20.1 | 659.4 | 70.61 | 0.1387 |
303-Al3 | SYCAMORE | 303.2 | 37 | 3.23 | 22.6 | 835.2 | 89.40 | 0.1095 |
362-Al3 | UPAS | 362.1 | 37 | 3.53 | 24.7 | 997.5 | 106.82 | 0.0917 |
479-Al3 | YEW | 479.0 | 37 | 4.06 | 28.4 | 1319.6 | 141.31 | 0.0693 |
498-Al3 | TOTARA | 498.1 | 37 | 4.14 | 29.0 | 1372.1 | 146.93 | 0.0666 |
587-Al3 | RUBUS | 586.9 | 61 | 3.50 | 31.5 | 1622.0 | 173.13 | 0.0567 |
659-Al3 | SORBUS | 659.4 | 61 | 3.71 | 33.4 | 1822.5 | 194.53 | 0.0505 |
821-Al3 | ARAUCARIA | 821.1 | 61 | 4.14 | 37.3 | 2269.4 | 242.24 | 0.0406 |
996-Al3 | REDWOOD | 996.2 | 61 | 4.56 | 41.0 | 2753.2 | 293.88 | 0.0334 |
Package and Delivery
wooden drums seaworthy or according to your requirements
delivery within 15 working days
