Good Selling AAC conductor(IEC61089 All Aluminium Conductor)

FOB Price

US$ 0.11 - 99.99 / Kilometer

50 Kilometers(Min. Order)

Port Qingdao
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	taifa
Model Number	AAC	Type	Bare
Application	Overhead	Conductor Material	Aluminum
Conductor Type	Stranded	Insulation Material	Other, bare

Product Description

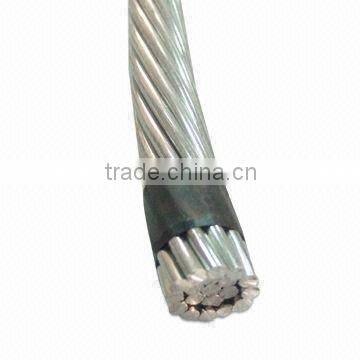

Good Selling AAC conductor(IEC 61089 All Aluminium Conductor)

1). Standard: IEC 61089

2). Specification:

AAC is composed by bare concentric-lay-stranded aluminum wires with a straight round central aluminum wire surrounded by one or more layers of helically layed aluminum wires.

3). Application:

* AAC are used in overhead electric power transmission and distribution lines with various grade voltages.

* Under the same weight, AAC is with higher resistance and lower cost than Copper conductor.

* Aluminium is light, so AAC is easy to lay.

The data sheets below show partial AAC technical characters based on standard

IEC 61089
Conductor type	Cross section	No. of wire	Wire diameter	Overall diameter	Weight	Breaking load	Maximum DC resistance at 20	Current carrying capacity
	mm²		mm	mm	kg/km	N	Ω/km	A
10	10	7	1.35	4.05	27.4	1950	2.8633	108
16	16	7	1.71	5.12	43.8	3040	1.7896	146
25	25	7	2.13	6.40	68.4	4500	1.1453	194
40	40	7	2.7	8.09	109.4	6800	0.7158	262
63	63	7	3.39	10.20	172.3	10390	0.4545	351
100	100	19	2.59	12.90	274.8	17000	0.2877	472
125	125	19	2.89	14.50	343.6	21250	0.2302	546
160	160	19	3.27	16.40	439.8	26400	0.1798	640
200	200	19	3.66	18.30	549.7	32000	0.1439	738
250	250	19	4.09	20.50	687.1	40000	0.1151	854
315	315	37	3.29	23.00	867.9	51970	0.0916	990
400	400	37	3.71	26.00	1102.0	64000	0.0721	1158
450	450	37	3.94	27.50	1239.8	72000	0.0641	1249
500	500	37	4.15	29.00	1377.6	80000	0.0577	1337
560	560	37	4.39	30.70	1542.9	89600	0.0515	1440
630	630	61	3.63	32.60	1738.3	100800	0.0458	1555
710	710	61	3.85	34.60	1959.1	113600	0.0407	1680
800	800	61	4.09	36.80	2207.4	128000	0.0361	1818
900	900	61	4.33	39.00	2483.3	144000	0.0321	1962
1000	1000	61	4.57	41.10	2759.2	160000	0.0289	2101
1120	1120	91	3.96	43.50	3093.5	179200	0.0258	2263
1250	1250	91	4.18	46.00	3452.6	200000	0.0231	2433
1400	1400	91	4.43	48.70	3866.9	224000	0.0207	2616
1500	1500	91	4.58	50.40	4143.1	240000	0.0193	2738

If you are interested in our products, pls feel free to tell me the diameter or nominal section area to me. Then,I will send our best quotation to you.
