1. Application: Used in overhead electric power transmission and distribution lines with

various voltage levels.

2. Standard: We can supply this conductor according to different recognized standards,

such as IEC61089, BS215,ASTM B231, CSA C49, DIN480201, JIS C3109, customers'

special specification also can be satisfied.

3. Features:

3.1. Under the same weight, AAC is with higher DC resistance and lower cost than copper

conductor.

3.2. AAC conductor has been widely used in power transmission lines with various voltage

levels, because it has such good characteristics as simple, convenient installation and

maintenance, low cost, and large transmission capacity. Moreover, it is also suitable for

laying across rivers, valleys and the places where special geographical features exist

Description: overhead transmission cable and as primary and secondary distribution cable.

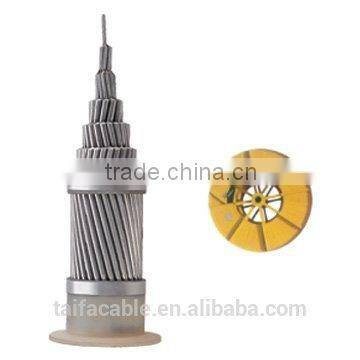

Construction: Bare aluminum alloy 1350-H19 wires, concentrically stranded around a Class A galvanized coated steel core wire. ACSR consists of a galvanized steel core of 1 wire, 7 wires, 19 wires etc. surrounded by concentric layers of aluminum wire.

Specifications:

Following the American Standards ( ASTM )

B-230 Aluminum Wire, 1350-H19 for Electrical Purposes

B-231 Aluminum Conductors, Concentric-Lay-Stranded

B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)

B-341 Aluminum-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)

B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)

B-500 Zinc Coated and Aluminum Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)

Data sheet:
