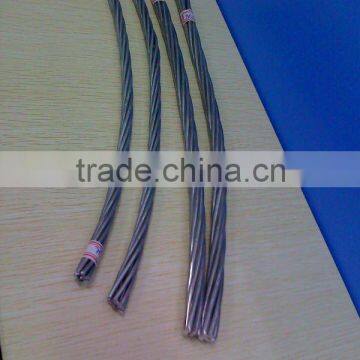

AAAC /ACSR Bare Conductor overhead wire
USD $0.11 - $99.98
/ Kilometer
10 Kilometers(Min. Order)
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Henan, China | Surface Treatment | Oxidized | |
| Alloy Or Not | Non-alloy | Al (Min) | 99.9% | |
| Conductivity | 100% | Brand Name | Taifa | |
| Model Number | AAC Conductor | Application | Power Station | |
| Wire Gauge | 10 |
Product Description
Specification:
ACSR(Aluminum Conductor Steel Reinforced) Bare Conductor power cable
1). Standard: IEC61089, BS215 part2, ASTM B232, DIN48204, BS EN50182
2). Application: ACSR is widely used in overhead electric power transmission and distribution lines with various voltage levels.
The data sheets below show partial ACSR technical characters based on standard DIN 48204:
| Code name | Cross section | No.of wires | Wire diameter | Diameter | Mass per unit length | Rated strength | DC resistance | |||||
| Al | Steel | Total | Al | Steel | Core | Total | ||||||
| mm2 | mm2 | mm2 | Al | Steel | mm | mm | mm | mm | kg/km | kN | ohm/km | |
| 25/4 | 23.9 | 3.98 | 27.8 | 6 | 1 | 2.25 | 2.25 | 2.25 | 6.75 | 96.3 | 8.95 | 1.2012 |
| 35/6 | 34.4 | 5.73 | 40.1 | 6 | 1 | 2.70 | 2.70 | 2.70 | 8.1 | 138.7 | 12.37 | 0.8342 |
| 44/32 | 44.0 | 31.7 | 75.6 | 14 | 7 | 2.00 | 2.40 | 7.20 | 11.2 | 369.3 | 44.24 | 0.6574 |
| 50/8 | 48.3 | 8.04 | 56.3 | 6 | 1 | 3.20 | 3.20 | 3.20 | 9.6 | 194.8 | 16.81 | 0.5939 |
| 50/30 | 51.2 | 29.8 | 81.0 | 12 | 7 | 2.33 | 2.33 | 6.99 | 11.7 | 374.7 | 42.98 | 0.5644 |
| 95/15 | 94.4 | 15.3 | 109.7 | 26 | 7 | 2.15 | 1.67 | 5.01 | 13.6 | 380.6 | 34.93 | 0.3060 |
| 95/55 | 96.5 | 56.3 | 152.8 | 12 | 7 | 3.20 | 3.20 | 9.60 | 16.0 | 706.8 | 77.85 | 0.2992 |
| 105/75 | 105.7 | 75.5 | 181.2 | 14 | 19 | 3.10 | 2.25 | 11.30 | 17.5 | 885.3 | 105.82 | 0.2742 |
| 120/20 | 121.6 | 19.8 | 141.4 | 26 | 7 | 2.44 | 1.90 | 5.70 | 15.5 | 491.0 | 44.50 | 0.2376 |
| 120/70 | 122.1 | 71.3 | 193.4 | 12 | 7 | 3.60 | 3.60 | 10.80 | 18.0 | 894.5 | 97.92 | 0.2364 |
| 125/30 | 127.9 | 29.8 | 157.8 | 30 | 7 | 2.33 | 2.33 | 6.99 | 16.3 | 587.0 | 56.41 | 0.2260 |
| 150/25 | 148.9 | 24.2 | 173.1 | 26 | 7 | 2.70 | 2.10 | 6.30 | 17.1 | 600.8 | 53.67 | 0.1940 |
| 170/40 | 171.8 | 40.1 | 211.8 | 30 | 7 | 2.70 | 2.70 | 8.10 | 18.9 | 788.2 | 74.89 | 0.1683 |
| 185/30 | 183.8 | 29.8 | 213.6 | 26 | 7 | 3.00 | 2.33 | 6.99 | 19.0 | 741.0 | 65.27 | 0.1571 |
| 210/35 | 209.1 | 34.1 | 243.2 | 26 | 7 | 3.20 | 2.49 | 7.47 | 20.3 | 844.1 | 73.36 | 0.1381 |
| 210/50 | 212.1 | 49.5 | 261.5 | 30 | 7 | 3.00 | 3.00 | 9.00 | 21.0 | 973.1 | 92.46 | 0.1363 |
| 230/30 | 230.9 | 29.8 | 260.8 | 24 | 7 | 3.50 | 2.33 | 6.99 | 21.0 | 870.9 | 72.13 | 0.1250 |
| 240/40 | 243.1 | 39.5 | 282.5 | 26 | 7 | 3.45 | 2.68 | 8.04 | 21.8 | 980.1 | 85.12 | 0.1188 |
| 300/50 | 304.3 | 49.5 | 353.7 | 26 | 7 | 3.86 | 3.00 | 9.00 | 24.4 | 1227.3 | 105.09 | 0.0949 |
| 305/40 | 304.6 | 39.5 | 344.1 | 54 | 7 | 2.68 | 2.68 | 8.04 | 24.1 | 1151.2 | 96.80 | 0.0949 |
| 340/30 | 339.3 | 29.8 | 369.1 | 48 | 7 | 3.00 | 2.33 | 6.99 | 25.0 | 1171.2 | 91.71 | 0.0852 |
| 380/50 | 381.7 | 49.5 | 431.2 | 54 | 7 | 3.00 | 3.00 | 9.00 | 27.0 | 1442.5 | 121.30 | 0.0758 |
| 435/55 | 434.3 | 56.3 | 490.6 | 54 | 7 | 3.20 | 3.20 | 9.60 | 28.8 | 1641.3 | 133.59 | 0.0666 |
| 450/40 | 448.7 | 39.5 | 488.2 | 48 | 7 | 3.45 | 2.68 | 8.04 | 28.7 | 1549.1 | 116.05 | 0.0644 |
| 490/65 | 490.3 | 63.6 | 553.8 | 54 | 7 | 3.40 | 3.40 | 10.20 | 30.6 | 1852.9 | 150.81 | 0.0590 |
| 510/45 | 510.5 | 45.3 | 555.8 | 48 | 7 | 3.68 | 2.87 | 8.61 | 30.7 | 1765.3 | 113.31 | 0.0566 |
| 550/70 | 549.7 | 71.3 | 620.9 | 54 | 7 | 3.60 | 3.60 | 10.80 | 32.4 | 2077.2 | 166.32 | 0.0526 |
| 570/40 | 571.2 | 39.5 | 610.6 | 45 | 7 | 4.02 | 2.68 | 8.04 | 32.2 | 1887.1 | 136.40 | 0.0506 |
| 650/45 | 653.5 | 45.3 | 698.8 | 45 | 7 | 4.30 | 2.87 | 8.61 | 34.4 | 2159.9 | 156.18 | 0.0442 |
Package and Delivery
wooden drums seaworthy or according to your requirements
delivery within 15 working days
