QT6-15 Fully Automatic Block Machine Price, Interlock Concrete Block Machine,Cement Brick Making Machine

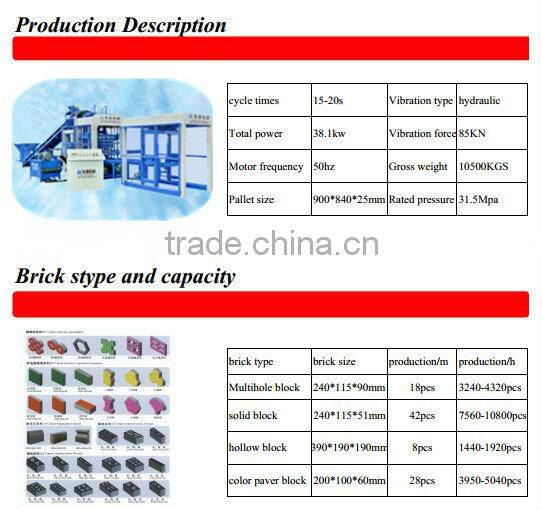

Specifications

QT6-15 Fully Automatic Block Machine Price, Interlock Concrete Block Machine,Cement Brick Making Machine

Our Advantage:

 1. Automatic weighing system

 2. Twin shaft compulsory mixer

 3. Simens PLC, Touch screen control unit

 4. Hydraulic proportional relief valve automatically adjust the oil flow and speed

 5. Heave duty frame of steel structure for heave working

 6. Mould heat treatment with wire cutting

 7. One production line can make all kinds block, just only change the mould

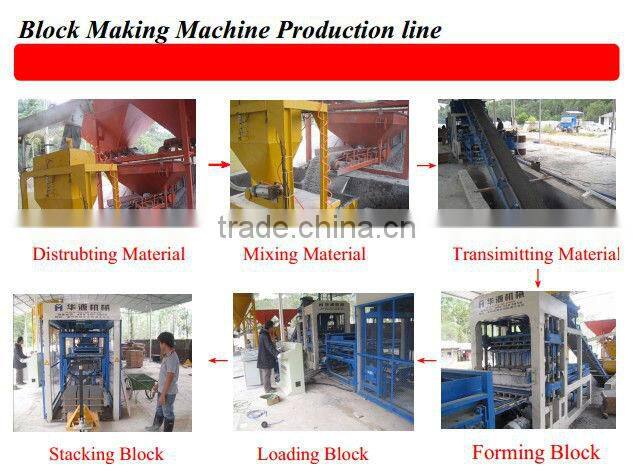

Batching Plant: This is the starting point of block making productione process. It consists of two loading bins and one weighing bin. It also contains blet conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.

Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. The mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mix automatically, as per requirement.

Conveyer Belt:  When the Batching plant’s weighing bin trips according to the PLC control, the material comes to this conveyer belt. The material is then carried to the Mixture Machine.

Block making machine:This is the key of the production line.It can press the mixed material.It can make various hollow block,solid brick,paver brick and kerbston.

Stacker:Stacker is used to lay the block automatically,it is high effiicent and labor saving

If You have any Question about the block making machine, Pls do not hesitate to Contact me
