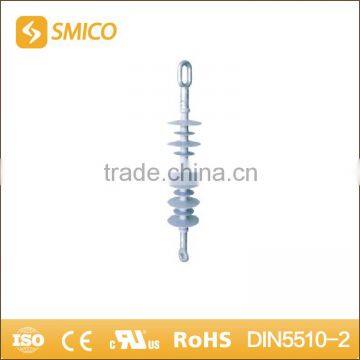

SMICO 2016 Top Selling Products Bus Bar Composite Suspension Insulator In 36kv
- Ningbo or Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
SMICO Factories Wenzhou Overhead Glass Suspension Insulator High Voltage
-
SMICO Interesting Products 2016 33Kv Suspension Polymer Post Insulator
-
SMICO Goods On Sale OEM Welcomed 24KV Medium Voltage Composite Pin Insulator
-
SMICO Hot Products 2016 Glass Fiber Epoxide Resin Suspension Glass Insulators
-
SMICO Hot Sale Products Electronic Accessories Support 11Kv Pin Insulator
-
SMICO High Profit Products Simple Installation Polymer 36KV Electrical Insulator
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SMICO | |
| Model Number | FXBW-36.70 |
Product Description
You are here:Home>>Insulator >>Suspension Composite Insulator
SMICO 2016 Top Selling Products Bus Bar Composite Suspension Insulator In 36kv
Main Technical parameters(Performance meet the GB/T 19519-2004,IEC61109 and 61952)
| Product Model | Rated Voltage (KV) | Rated mechanical bending load (KV) | Structure Height H.(mm) | Min.Arc distance Li.(mm) | Min.creepage distance Lc.(mm) | Diameter of shed D.(mm) | Lightning impulse withstand voltage (peak)(KV) | P.F.1min wet withstand voltage (Virture value)(KV) |
| FXBW-12/70 | 12 | 70 | 310 | 150 | 380 | 98/88 | 95 | 42 |
FXB- 12/70 | 12 | 70 | 350 | 180 | 420 | 90 | 95 | 42 |
| FXBW-15/70 | 15 | 70 | 360 | 180 | 465 | 98/88 | 95 | 42 |
FXBW- 24/70 | 24 | 70 | 425 | 230 | 575 | 98/88 | 125 | 65 |
| FXBW-33/70 | 33 | 70 | 560 | 360 | 1000 | 92/62 | 170 | 95 |
FXBW- 33/100 | 33 | 100 | 750 | 430 | 1400 | 130/100 | 185 | 95 |
FXB- 35/70 | 35 | 70 | 500 | 330 | 900 | 92 | 145 | 95 |
FXBW- 36/70 | 36 | 70 | 610 | 380 | 1050 | 114/74 | 185 | 95 |
FXB- 36/70 | 36 | 70 | 550 | 380 | 850 | 92 | 170 | 95 |
FXBW-36/120 | 36 | 120 | 670 | 430 | 1400 | 130/100 | 185 | 95 |
1.Packaging:
Export Carton,or as your request.
2.Shipping Methods:
By air or by sea(FOB port:Shanghai/Ningbo),by express (DHL,UPS,TNT,FEDEX).
1. Your inquiry related to our product & price will be replied within 24 hours.
2. Well-trained & experienced staff are to answer all your inquiries.
3. Customized solution & perfect after-sale service.
4. Our advantage:
A.Competitive price B.Good quality
C.Timely delivery D.New model launch weekly
E.Own manufacturing F.Own quality control
1.Manufacturer With Competitive Price And High Quality.
-We are the manufacturer with direct sale price and high quality to help you open the markets which located in Wenzhou City, Zhejiang Province, China. Welcomed to visit our company.
2.OEM/ODM.
-We are the manufacturer with a brilliant team work team work.
3. Usual Payment Term.
-We accept terms of T/T in advance, L/C, Western Union and others. Any question, please ask us!
4. Warranty Time.
-1.5 years. Any problem of the quality is changed by your next order free.
5.Free Sample.
-Yes, we provide small products to check quality for you, just you pay the express fees.
