Product Details
| Place of Origin | Zhejiang, China | Brand Name | SMICO | |
| Model Number | FPQ-33/10 |
Product Description
You are here:Home>>Insulator >>Suspension Composite Insulator

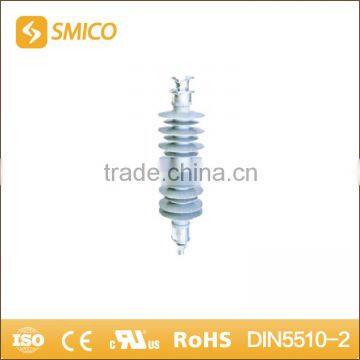

SMICO 2016 Highest Demand Products 33KV Suspension Composite Peek Insulator
Main Technical parameters(Performance meet the GB/T 19519-2004,IEC61109 and 61952)
| Product Model | Rated Voltage (KV) | Rated mechanical bending load (KV) | Structure Height H.(mm) | Min.Arc distance Li.(mm) | Min.creepage distance Lc.(mm) | Diameter of shed D.(mm) | Lightning impulse withstand voltage (peak)(KV) | P.F.1min wet withstand voltage (Virture value)(KV) |
| FZSW-24/6 | 24 | 6 | 315 | 200 | 450 | 120/100 | 145 | 65 |
FPQ2- 24/4 | 24 | 4 | 280 | 160 | 665 | 130/100 | 145 | 65 |
| FZSW-24/4 | 24 | 4 | 305 | 220 | 640 | 120/100 | 145 | 65 |
FPQ- 24/11 | 24 | 11 | 280 | 165 | 665 | 135/105 | 145 | 65 |
| FZSW-33/6 | 33 | 6 | 450 | 360 | 900 | 148/118 | 185 | 95 |
FPQ- 33/10 | 33 | 10 | 485 | 360 | 1255 | 122/92 | 185 | 95 |
FPQ- 33/12 | 33 | 12 | 545 | 380 | 1485 | 200 | 185 | 95 |
FPQ- 36/12 | 36 | 12 | 580 | 460 | 1460 | 140/110 | 185 | 95 |
FPQ-36/12.5 | 36 | 12.5 | 580 | 460 | 1460 | 140/110 | 185 | 95 |
1.Packaging:
Export Carton,or as your request.
2.Shipping Methods:
By air or by sea(FOB port:Shanghai/Ningbo),by express (DHL,UPS,TNT,FEDEX).
1. Your inquiry related to our product & price will be replied within 24 hours.
2. Well-trained & experienced staff are to answer all your inquiries.
3. Customized solution & perfect after-sale service.
4. Our advantage:
A.Competitive price B.Good quality
C.Timely delivery D.New model launch weekly
E.Own manufacturing F.Own quality control
1.Manufacturer With Competitive Price And High Quality.
-We are the manufacturer with direct sale price and high quality to help you open the markets which located in Wenzhou City, Zhejiang Province, China. Welcomed to visit our company.
2.OEM/ODM.
-We are the manufacturer with a brilliant team work team work.
3. Usual Payment Term.
-We accept terms of T/T in advance, L/C, Western Union and others. Any question, please ask us!
4. Warranty Time.
-1.5 years. Any problem of the quality is changed by your next order free.
5.Free Sample.
-Yes, we provide small products to check quality for you, just you pay the express fees.
