city gate gas station

Specifications

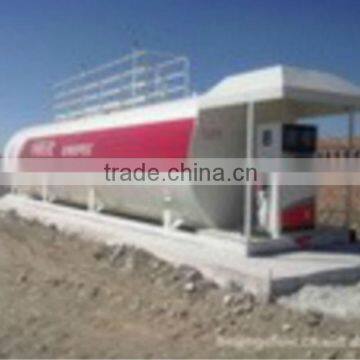

Skid-mounted gas station is as one of the  storage tank,tanker and  video surveillance .it  makes use of  technological explosion barrier ,when it meets fire,static electricity,hitting,lightning,shooting and welding,it will not explosion.Morever,it has the following features:preventing  fire and explosion ,security,sall footprint and easily moved.

It is widely use for bus statin,port,airport,large construction sites and Internal gas station.

• Model: YP1000/50-250;
• Type: P Type, horizontal, double action, reciprocating piston;
• Theoretical capacity: 1000Nm3/h;
• Media: Desulfurized natural gas (main composition CH4);
• Ambient work temperature: -15~+45°C;
• Compression stage: 2 stages;
• Suction status: 5MPa at temperature 0~35°C;
• Outlet discharge pressure: 25Mpa at temperature ≤45°C or less than ambient temperature 15°C(afer cooling);
• Piston reciprocating times: 11~13 times/minute;
• Main oil pump type and constant power rate: bent axis axial variable pump(L7V117LV2.0RP00)
• Constant power output: 28KW;
• Constant power input: ≤35KW;
• Oil pumpconstant power minimum adjustable pressure:  10.2MPa;
• Hydraulic system maximum work pressure: 16.0MPa;
• Oil pump maximum oil supply: 164L/min.;
• Oil pump maximum oil supply: 127L/min.;
• Driving mode: electric motor, direct coupling, by oil pump;
• Electric motor model No.: Explosion-proof motor No. YB2-225M-4B35, 37KW, 1480rpm, Diibt4;
• Oil lubrication mode: Oil free in cylinder and packing assembly;
• Power rate for air cooler: cooling air 1.5KW, cooling hydraulic oil 2.2KW;
• Control mode: PLC + Touch Screen+Soft Starter;
• Cooling mode: Natural cooling for cylinder, air cooling for gas;
• Installation mode: outdoor, skid mounted fixation;
• Total weight of skid mounted unit: 7150KG;
• Overall sizes of skid mounted container (LxWxH): 3350×2330×2700mm
