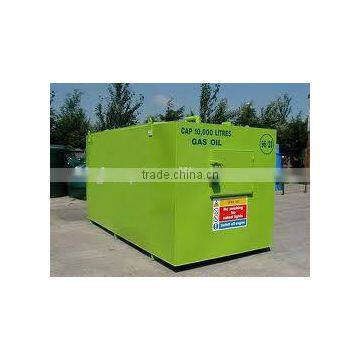

high quality self bunded fuel station on hot sale

Specifications

Standard Tank Features

• Enclosed bunded tank design
• Reduced maintenance costs
• Needs only suitable level hardstanding for sitting on site
• Easily transportable
• Corner casting for offloading
• Galvanized ladder at front and bunded pump bay
• Platform for inspection
• 80nb Camlock Male Tanker hose filler c/w Dust Cap connection.
• 80nb Fire Safe Flanged Ball Valve
• Non Return Valve.
• Ant-isyphon valve
• Tank with pump bund, ladder at front(Ladder also can be designed at side wall)
• 600mm dia manway access to internal tank
• Vent valve
• Unit sandblasted to SA2
• Front mounted security doors (optional)
• Tank signage
• Overfill protection valve.
• Three coat Hemple paints, color customized.

Tank offer

Large Power Generation

Tanks are well-suited for long-term, continuous operation of large generators.

Large Construction Sites & Road Projects

For long-term construction projects requiring fuel tanks for equipment refueling, Intech ITS tanks provide a solid solution

Mining and Oilfield

Significant production operations benefit from larger volume INTECH ITS fuel tanks.

CSC Approval

Individually certified by CCS, each container holds a CSC "Convention of Safe Containers" certificate with a CSC plate mounted on the front of each tank.

Tank Specification

• Dimension: L12,192mm x W2,438mm x H2,896mm
• Capacity: 68,800Litres
• Tare weight: 14,050kg
• Painting System ,Three coats paint

First (Epoxy zinc rich primer)
Second (Epoxy high build)
Third (Polyurethane surface painting)
