high quality 20feet and 40feet mobile fuel stations manufacturer
- 100 Unit / Units per Month
- Qingdao
- T/T Credit Card PayPal
You May Like
Product Details
Condition | New | Capacity | 10000L to 50000L | |
Place of Origin | Shandong, China | Brand Name | Luqiang | |
Model Number | LQRQ202 | Dimension(L*W*H) | Customized | |
Weight | 4.3t to 9.3t | Certification | ISO9001 | |
Warranty | 5 years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications:
1) The fuel tank used for storage oil (diesel, gasoline, etc.) in static, but can not use for transportation.
2) The shape and size based on the design of container.
3) The capacity can be adjusted according to the customer.
4) Painting System: Three coats paint
First: Epoxy zinc rich primer
Second: Epoxy high build
Third: Polyurethane surface painting
5)Out shell material: Q235(double wall: 6mm steel inner and 6mm steel outer)
Description:
Manufacturer of Tanks Service Stations Gas Station, petrol fuel station.
The tank station can be equipped as a complete gas station | service station for cars, trucks and diesel locomotives or as tank container for yachts and boats.
The tank station can also be applied as airfield gas station (gas station/service station for helicopters).
Own integrable current supply.
International transportation permission for ship, rail and road (CSC).
General construction supervision approval as storage tank.
Extremely robust and high static firmness.
Double-wall structure with vacuum leakage indicator.
Protective arrangement of the equipment inside the tank body.
Used place
The fuel tank with tanker can become mobile fuel station; it can be used for field, mines and other large machinery, various equipment and refueling vehicles conveniently.
20FT POWER GENERATOR SERIES SPECIFICATIONS | |||
External | Dimensions | MM | +/ - |
Length | 6,058 | +0-10 | |
Width | 2,438 | +0-5 | |
Height | 2,896 | +0-5 |
Special requirement from the customer is available

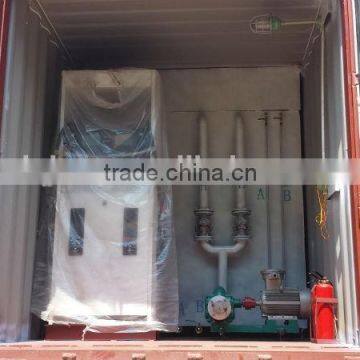

Standard Specifications § 1x fuel 50liters/min dispenser with 2 filling nozzles. Fuel Hose length 10 meters. § 1x fuel transfer pump, approximately 500Liter/min. Capable of loading and supply. § 2x Fire extinguisher § Single wall plated carbon steel tank. § 3” Fuel fill point (Cam Lock) / Overfill protection valve. § Tank level and temperature gage indicator. § Integrated ladder and sunshield for top of container access. § 1xlight in the dispensing room
Safety: § Air breath valve / emergency relief valve § High level alarm. § Emergency shut off system point and leak detection. § Sealed area around the Valve to give Product Binding in All Areas. § System grounding point to hearth and resistance point and capability for testing |
Specification | |||
Tare Weight | 8,500 Kg | Capacity in Litres | 36,000 L |
Laden Weight | 24,500Kg | Capacity in Gallons | 8,800 G |
Length | 12,192 mm | Inner Tank Thickness | 6 mm |
Width | 2,438 mm | Outer Bund Thickness | STD ISO 40’ Container |
Height | 2,591 mm | Control Box | Right side wall |
*Customized is available. |
