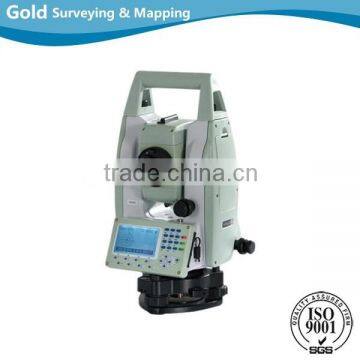

High-accuracy Absolute Ecoding Total Station

Angle Measurement

Measurement Method............................................................Absolute Encoding

Minimum Readout..................................1’’/5’’/10’’(0.3mgon/1.5mgon/3mgon)

                                                        adjustable

Accuracy.............................................................................................................2’’

Distance Measurement (with reflector)

Single Prism............................................3000m (9,842ft.) under good condition

Three Prisms.........................................6000m (19,685ft.) under good condition

Reflective Sheet............................................................................800m (2,624ft.)

Accuracy...........................................................................................2mm + 2ppm

Measuring Time (Fine/Quick/Tracking)..............................................1.5s/1s/0.5s

Distance Measurement (without reflector)

Reflectorless Range.......................................................................350m (1,148ft.)

Single Prism............................................................................ >7500m (24,606ft.)

Accuracy............................................................................................3mm + 2ppm

Measuring Time..............................................................................................1.5S

Telescope

Magnification..................................................................................................30X

Field of View.........................................................................1°30’ (2.7m at 100m)

Minimum Focusing Distance.........................................................................1.5m

Reticle.................................................................................................Illuminated

Compensator

System......................................Single-axis Liquid tilt sensor/Dual-axis (optional)

Working Range.................................................................................................±3’

Setting Accuracy................................................................................................1’’

Communication

Bluetooth

Interface.....................................Standard RS232,SD card,USB pen drive,mini-B

Internal Data Memory........................................................Approx 20000 points

Data Format................................................................................................ASCII

Operation

Operation system...................................................Real-time Operating System

Display....................High resolution backlight black and white display with contrast adjustment.

Graphic......................................................................................280 * 160 pixels

Character..........................................................................6 lines * 25 characters

Keyboard.................................2 sides Alphanumeric backlight crystal keyboard

Laser Plummet

Type....................................................................Laser point, 4 brightness levels

                                 Adjustment/Optical plummet (optical)

Centering Accuracy............................................1mm at 1.5m instrument height

Power Supply

Battery Type.............................................................Rechargeable Li-ion battery

1Voltage/Capacity.................................................ZBA-400: 7.4V(DC) /3000mAh

Operating Time with ZBA-400...................................................Optimal 16 hours

       (Continuous angle measurement every 30 seconds)/10 hours (typical)

Measuring Times.................................................................Approx. 12000 times

Weight

Weight (Incl, Battery&Tribrach).......................................Approx. 5.5kg (12.1lb.)

Environmental

Operating Temperature......................................-20℃ ~+50℃ (-4F to +122F)

Storage Temperature.........................................-40℃ ~+70℃ (-40F to +158F)

Dust&Water Proof (IEC60529 Standard)/Humidity: IP65,95%,non-condensing

Dual-axis Compensation:

The HTS-220/R is configured with advanced dual-axis compensator for auto error elimination and auto accuracy compensation.

Absolute Encoding:

The absolute encoding disk ensures high accuracy, efficiency and stable performance. Initialization is needless but to measure the angle immediately as the HTS-220/R is turned on. The azimuth information won’t be missed even the HTS-220/R is power-off unexpectedly.

High-performance MCU:

The STM32 MCU based on ARM Cortex-M processor enables the HTS-220/R has extra high processing speed and low-power consumption.

Bluetooth:

The Bluetooth wireless technology makes HTS-220/R accessible to any data collector for real-time communication. The third party field software such as Carlson SurvCE is fully compatible with the HTS-220/R.

Data Storage:

Diversified data transfer options such as SD card, USB pen drive, mini-B interface.

Backlight:

The display and keyboard with backlight for working in the dark.

Diagonal Eyepiece:

Support diagonal eyepiece for observation at steep line of sight.

Calibration Software:

The proprietary Calibration software is accessible for real-time diagnosis to ensure trouble-free operation.

Data Transfer Software:

The proprietary data transfer software supports different type of output data format, which can be used in autoCAD or other brands’ post processing software.
