OEM ODM high reliablity fast on connector

FOB Price

USD $0.6 - $1.2 / Piece

100 Pieces(Min. Order)

Port Shanghai/Guangzhou
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	Unikit
Model Number	SCUPC-01

Product Description

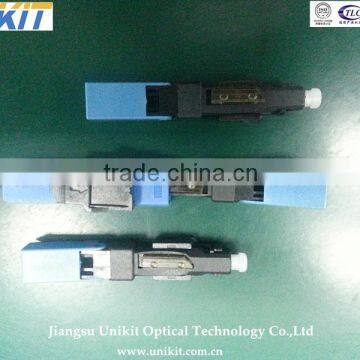

OEM ODM high reliablity fast on connector.

SC APC PC UPC fiber Optic Fast connector waterproof Splice On Connectors for FTTH ,ODN

Fast fiber optic connector can provide a quick and easy termination of fibers in the field and options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens.

SC/UPC Optical Fiber Field Splice Connector

Operation video weblink:

ESC250D /watch?v=0q_qx1n7sXY

/watch?v=EmUgU2Vaquc

Technical specification

Item	Parameter
Cable Scope		3.0 x 2.0 mm Bow-type Drop Cable
Fiber Diameter		125μm ( 652 & 657 )
Coating Diameter		250μm
Mode		SM
Operation Time		about 15s(exclude fiber presetting)
Insertion Loss		≤ 0.25dB(1310nm & 1550nm)
Return Loss		≤ -55dB
Success Rate		>98%
Reusable Times		>10 times
Tighten Strength of Naked Fiber		>5 N
Tensile Strength		>50 N
Temperature		-40~+85°C
On-line Tensile Strength Test (20 N)		IL ≤ 0.3dB
Mechanical Durability(500 times)		IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)		IL ≤ 0.3dB

In stock ready to go!

The difference is our expertize!
