Tool free SC fast connector RSC250D
- Shanghai/Guanzhou
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Unikit | |
| Model Number | Tool free SC fast connector RSC250D |
Product Description
Specifications
1. SC FTTH Drop Cable Connector2. ISO9001:2008, RoHs, TLC ,Own Patents
3. optical equipment

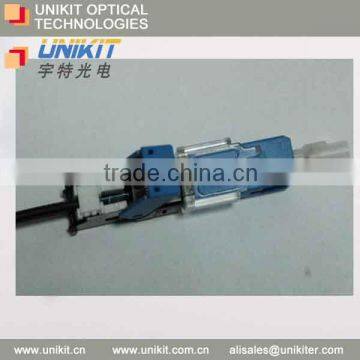

Tool free SC fast connector RSC250D
Operation video:
/watch?v=SQeas4OjgE4&feature=youtu.be
Item | Parameter | |
Cable Scope | 3.0 x 2.0 mm Bow-type Drop Cable | |
Fiber Diameter | 125μm ( 652 & 657 ) | |
Coating Diameter | 250μm | |
Mode | SM | |
Operation Time | about 15s(exclude fiber presetting) | |
Insertion Loss | ≤ 0.2dB(1310nm & 1550nm) | |
Return Loss | ≤ -50dB | |
Success Rate | >98% | |
Reusable Times | >10 times | |
Tensile Strength | >5 N | |
Tighten Strength of Coating | >10 N | |
Temperature | -40~+85°C | |
On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB | |
Mechanical Durability(500 times) | IL ≤ 0.3dB | |
Drop Test(4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB | |
