Home > Products > Fiber Optic Connector > field installable fusion splicer-on FC connector

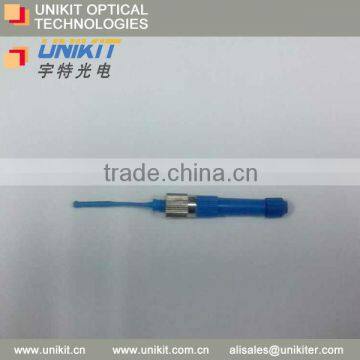

field installable fusion splicer-on FC connector
- Shanghai/Guangzhou
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Unikit | |
| Model Number | field installable fusion splicer-on FC connector HMSC250R |
Product Description
Specifications
1. field installable fusion splicer-on FC connector2. ISO9001:2008, RoHs, TLC ,Own Patents
field installable fusion splicer-on FC connector
Operation video:
/watch?v=yCiNAcVteo8
/watch?v=EmUgU2Vaquc
Item Parameters
Application 3.0 x 2.0 mm butterfly drop cable
Cladding Diameter 125μm ( 657A & 657B )
Coating Diameter 250μm
Insertion Loss ≤ 0.3dB(1310nm & 1550nm)
Reflection Loss > 50dB
Rate of success >95%
Clamping Force >5 N
Tension >20 N
Temperature Range -40~+75°C
Tension Test when installed (20 N) IL ≤ 0.2dB RL ≤ 5dB
Mechanical Endurance (500 times) IL ≤ 0.2dB RL ≤ 5dB
Fall-down Test (4 meters height, 3 time each direction) IL ≤ 0.2dB RL ≤ 5dB
