Home > Products > Fiber Optic Connector > Tool free SC fast connector ESC250P-LW

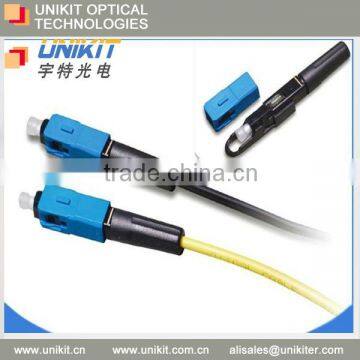

Tool free SC fast connector ESC250P-LW
- Shanghai/Guangzhou
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Unikit | |
| Model Number | Tool free SC fast connector ESC250P-LW |
Product Description
Specifications
1. Tool free SC fast connector ESC250P-LW2. ISO 9001:2008, HoQs, TLC
Tool free SC fast connector ESC250P-LW
Operation Vedio:
/watch?v=IF5rWy3g2WM
/watch?v=EmUgU2Vaquc
Technical specification
Item | Parameter | |
Cable Scope | 3.0 x 2.0 mm Bow-type Drop Cable 2.0/3.0 indoor cable | |
Fiber Diameter | 125μm ( 652 & 657 ) | |
Coating Diameter | 250μm | |
Mode | SM | |
Operation Time | about 15s(exclude fiber presetting) | |
Insertion Loss | ≤ 0.3dB(1310nm & 1550nm) | |
Return Loss | ≤ -45dB | |
Success Rate | >98% | |
Reusable Times | >10 times | |
Tighten Strength of Naked Fiber | >5 N | |
Tensile Strength | >50 N | |
Temperature | -40~+85°C | |
On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB | |
Mechanical Durability(500 times) | IL ≤ 0.3dB | |
Drop Test(4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB | |
