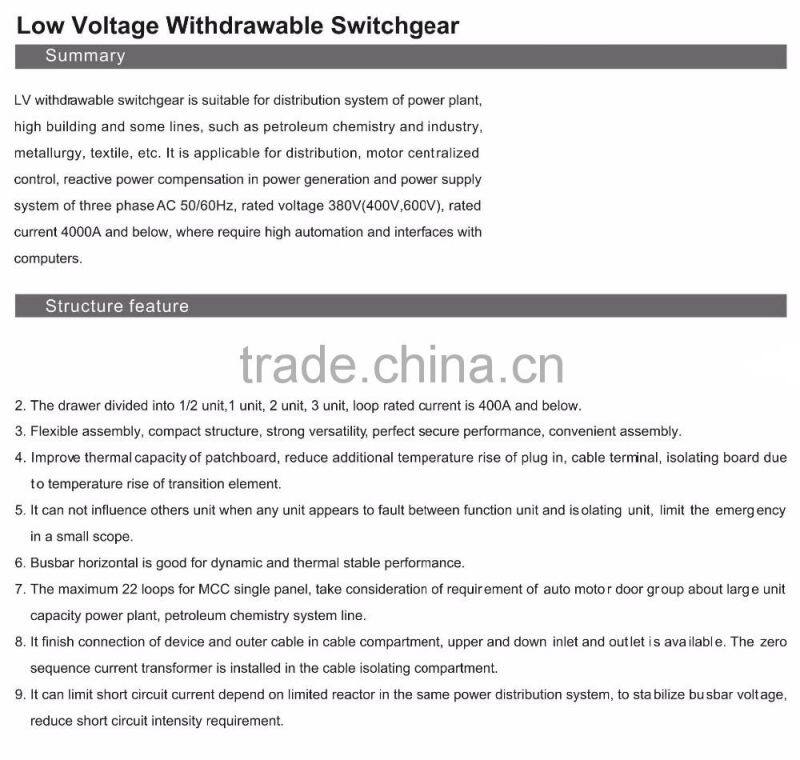

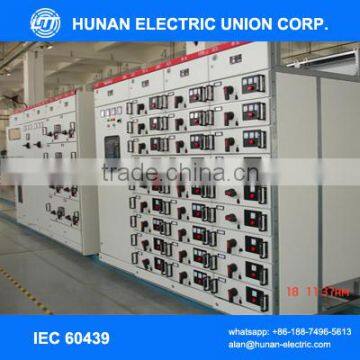

Low Voltage Withdrawable Switchgear/switchboard/Motor Control Center
- Shanghai
- T/T Credit Card
You May Like
-
Motor Control Center/MCC
-
0.4kV Low Voltage Withdrawable Switchgear/switchboard
-
0.4/11/24/35KV Switchgear/Switch Cabinet/ Switchboard/ Electrical Cubicle/KYN28A-12
-
Switchgear
-
15kV/20kV/22kV Medium Voltage Withdrawable Switchgear With IEC Standards
-
6kV/10kV/11kV Withdrawable VCB Switchgear/Switchboard
Product Details
| Brand Name | HN electric | Model Number | MNS |
Product Description

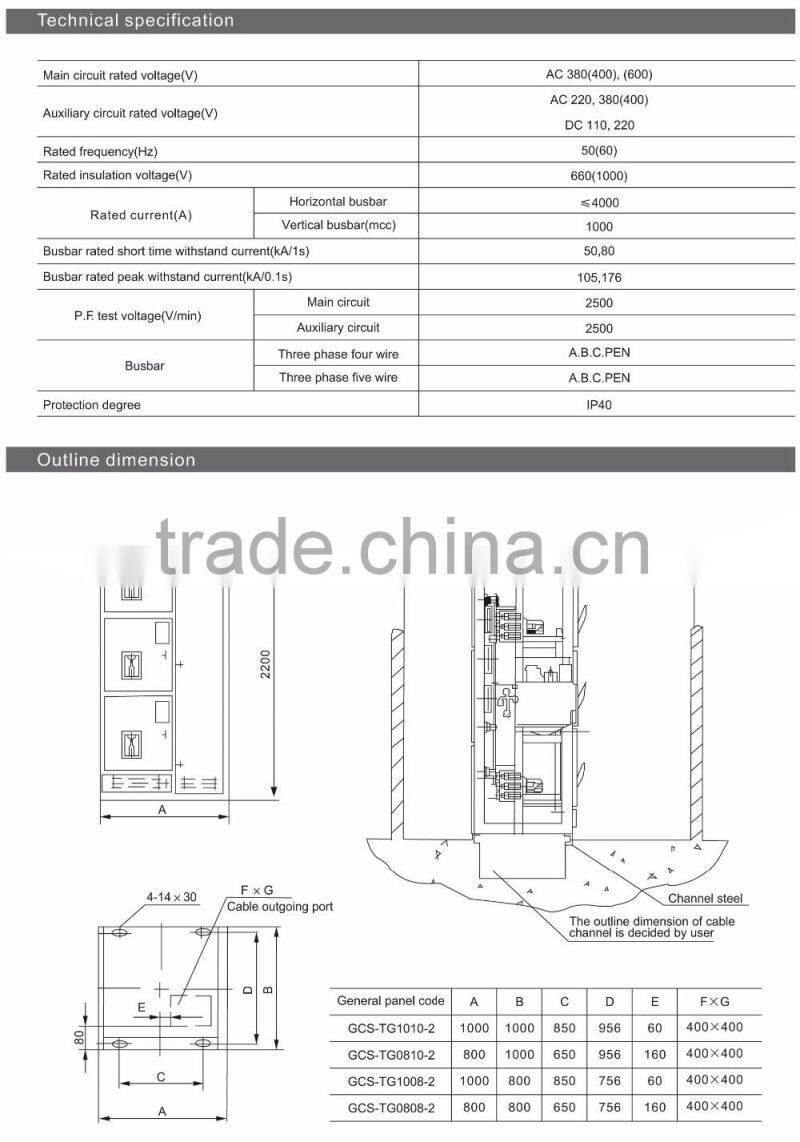

Service condition | |
Normal Condition
Ambient temperature Indoor -5°C to +40°C Outdoor -10°C to +40°C Humidity 90% Altitude ≤1000m Pollution Level I-Light Level II-Medium Earthquake UBC Zone 3
| Special Condition
Ambient temperature Indoor -15°C to +40°C, -25°C to +40°C Outdoor -10°C to +50°C, -25°C to +40°C -40°C to +40°C Humidity 95%, 98% Altitude ≤2000m, ≤3000m, ≤4000m Pollution Level III-Heavy Level IV-Very Heavy Earthquake UBC Zone 4
K-factor 3, 5, 7, 9, 11, 13, 15, 17
|
Standard code IEC 60694 Common specifications for high-voltage switchgear and controlgear standards IEC 62271-200 High-voltage switchgear and controlgear-Part 100: AC metal-enclosed switchgear and controlgear for rated voltage above 1 kV and up to and including 52kV IEC 62271-202 High-voltage switchgear and controlgear-Part 202: High voltage/low voltage prefabricated substation IEC 62271-105 High-voltage switchgear and controlgear-Part 105: Alternating current switch-fuse combinations IEC 62271-102 High-voltage switchgear and controlgear-Part 102: High-voltage alternating current disconnectors and earthing switches
| |
