Heavy and large cnc lathe, heavy duty machine tool, torno CNC

FOB Price

US$ 54,960 - 56,600 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

CNC Machining or Not	CNC Machining	Type	Broaching, Drilling, Laser Machining, Milling, Rapid Prototyping, Wire EDM
Material Capabilities	Aluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel Alloys	Micro Machining or Not	Not Micro Machining
Place of Origin	Shandong, China	Model Number	CJK61125B-2
Brand Name	HAISHU

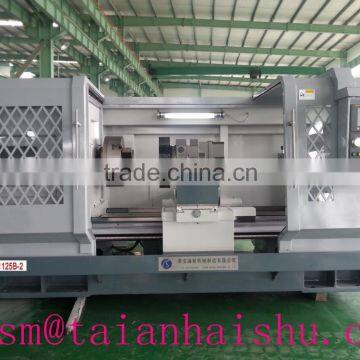

CJK61100B-2/ CJK61125B-2 HEAVY DUTY CNC LATHE

Item	Project name	Technical paramaters
		CJK61100B-2	CJK61125B-2
technical specifications	Max.swiming over the bed dia. (mm)	1000	1250
	Max.swiming over pallet(mm)	660	880
	Max.the workpiece length(mm)	1500,3000,6000
Main transmission	Main transmission form	Three handle to speed ; frequency conversion stepless
	Number of spindle speeds	stepless
	Range of spindle speed(r/min)	18~600
	The form of the spindle head	C11
	Spindle taper hole	120 1:20
	Spindle bore(mm)	Φ130
	Main motor power(kw)	15kw
Feed system	Turret maximum stroke(mm)	X - axis: 530	X - axis: 650
		Z - axis: 1650,3100,6100
	Fast-moving feed(mm/min)	X - axis:4000 Z - axis:5000
	Repeat positioning accuracy(mm)	X - axis:0.01 Z - axis:0.015
	Workpiece accuracy	IT6-IT7
	Workpiece surface roughness	Ra1.6
Tailstock	Dia. of tailstock quill(mm)	Φ100
	Tailstock quill stroke(mm)	250
	Taper of tailstock quill	MT6
Tool post	Standard accessories	4 station electric tool
	Opinional accessories	Horizontal 6 station electric turret
	Repeat positioning accuracy(mm)	0.01
	Section of turning tool(mm)	30*30
Size and weight	The size of the machine (lengthwidthheight)(mm)	3800/5300/830019201800
	Net weight of the machine(kg)	6000,8500,13500
