Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 500mm | Place of Origin | Shandong, China | |
| Brand Name | HaiShu | Model Number | CJK6150B-1 | |
| Voltage | 380v 50hz | Power(W) | 7.5kw | |
| Dimension(L*W*H) | 2700/3200/3700/4700 mmx1300 mmx1750mm | Weight | 2600kg,3000kg,3600kg,4800kg,6000KG | |
| Certification | CE ISO TUV | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

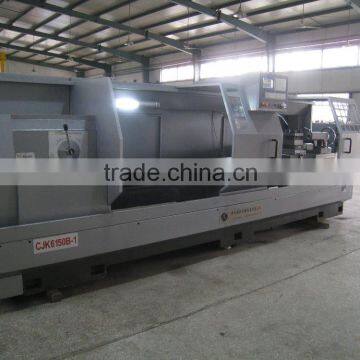

horizontal lathe CJK6150B-1 chinese lathes for sale
1. Technical parameters
items | parameters |
Maximum workpiece swing diameter over bed | Φ500mm |
Dragged on board the maximum workpiece swing diameter | Φ300mm |
Maximum length of workpiece | 1000mm,1500mm,2000mm,3000mm,4000mm |
Range of spindle speeds | 50~1700rpm |
Spindle bore diameter | Φ82mm |
Width of guide rails | 420mm |
The form of spindle head | D-8 |
Taper of spindle bore | 1:20 |
Turret Number of tool | 4/6/8/ or row of knife |
Tool cross-section specifications | 25mm×25mm |
Motor minimum setting unit | Z: 0.001mm , X: 0.001mm |
Arbor fast forward speed | Z: 10m/min, X: 8m/min |
Tailstock quill taper | MT5 |
Tailstock quill maximum moving distance | 150mm |
Power of main motor | 7.5KW |
The lathe Dimensions (L × W × H) | 2700/3200/3700/4700 mm ×1300 mm×1750mm |
Lathe Net | 2600kg,3000kg,3600kg,4800kg |
2. main features
(1) Frequency stepless speed third handles, has the advantage of independent spindle and the gear shift, high torque , wide speed range, high processing efficiency, high precision, energy saving and environmental protection.
(2) Spindle diameter increases(φ82mm).
(3) The width of the bed: 420mm. The whole casting at the bed
(4) Feed of X Z axis are driven by ball screw with servo-motor
(5) the guideway use hyperacoustic quenching.
(6) Hardended and ground bed guide way coated with Turcite-B
(7) high pression ball screw, High rigid precision composite bearing structure
(8) ball screw and the guide surface combination use automatic lubrication
3. Configuration
(1)the controller system: GSK (Guangzhou), KND (Beijing), Guangtai, Simens (Germany), Fanuc (Japan)
(2) Chuck optional: manual, pneumatic or hydraulic chuck.
(3) Tailstock optional: manual, pneumatic, hydraulic.
(4) Turret optional: Vertical four, horizontal six, horizontal eight,gang-type tool carrier and ect
(5) Lubrication configuration: automatic oil lubrication system.
4. Uses
Suitable for rough turning and precision machining of steel castings, iron castings and other materials.
If you are interested in horizontal lathe CJK6150B-1 chinese lathes for sale , welcome to leave a message or send the inquiry to understand the details of machine.
