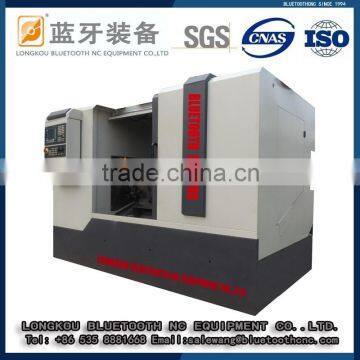

CXF-W60 CNC automatic hexagon lathe machine for Stainless steel

Description

 The CXF-W40 CNC automatic hexagon lathe machine for Stainless steel with turning&milling  is our patent invention, it can finish different production methods,such as:turning,milling,drilling,deburring and plunge-cutting etc by once clamping.

advantage:

 A) CNC Polygon Lathe composite machine  can finish different production methods,such as:turning,milling,drilling,deburring and plunge-cutting etc by once clamping.One worker can operate 2-8 sets even more, save much cost for factory.

 B) CNC Polygon Lathe composite machine can turning & milling Flat,Square,Hexagons,Polygons etc.

 C) CNC Turning & milling composite machine  is suitable for diameter-variable processing of polyhedron. Compared with the traditional ways, the machining accuracy of CXF horizontal series have been more increased,  this series of machinery is widely used in machinery manufacturing, machinery manufacturing, hardware tools, auto parts, aerospace  and draining etc.

Main features

1. High rigidity structure design:

with one piece casting, the machine has large loading section, so it has nice rigidity and shock absorption which ensure the high precision working.

2. High efficiency and low noise:

with AC servo motor and V type belt effective transmission, the machine can escape noise.

3. Main spindle with high speed and rigidity:

with NSK precision high speed spindle sets, retightening force and nice spacing supporting, the spindle has high rigidity and speed.

4. Knife rest with high reliability:

the high rigidity hydraulic knife rest has high reliability and repeat location accuracy.

5. The machine is designed:

 with ball-screw, plastic stickers; it has high efficiency of driving &accuracy, steady movement of knife rest.

6. Automatic centralized lubrication system:

the guide way and ball-screw can be lubricated with continuously and effectively.

7. Whole sealing protection:

without the leak of coolant liquid, the machine can provide a safety and comfortable working environment.

8 .Chip removal coolant system:

the individual chip removal coolant system has chained ship removal equipment and coolant pump with large flow.

Technical Parameters
