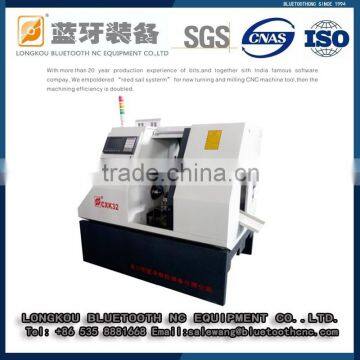

High efficient cheap price turning and milling machine/CNC lathe/cxk32 for bits
- Qingdao
- Credit Card
You May Like
-
Super Quality and Best Price CXF-W60 hard guide CNC automatic lathe machine
-
CXF-W50 CNC lathe machine for turning hexagon bolt/stud polygon
-
CXF-W80 CNC machine lathe for processing hexagon lathe
-
CXF-W60 hard guide CNC automatic lathe machine
-
CXF-W60 Linear Guide Horizontal CNC Lathe
-
CXF-W50 economical CNC turning-lathe
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | lanya | Model Number | cxk32 | |
| Type | Horizontal | CNC or Not | CNC | |
| Voltage | 380V | Power(W) | 2.2KW | |
| Dimension(L*W*H) | 1400X1050X1700mm | Weight | 1000KGS | |
| Certification | ISO9001:2008 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High efficient cheap price turning and milling machine/CNC lathe/cxk32 for bits
CXK32 CNC turning and milling composite machine for bits can finish turning,milling etc much more process by once clamping on the one end of the bit.
advantage:
A) CNC turning&milling machine for bit integrate turning, milling, drilling, and other multi - pass process in one, one worker can operate 4-6 sets even more, save much cost for company.
B) CNC turning&milling machine for bit have high efficient, 8-12pcs/min.
C) CNC turning&milling machine for bit have more Multi-function,can produce: Phillips,Flat,Torx, Pozidriv,Squre,Hexagonal etc.
| Items | UNIT | Main techinical data |
|---|---|---|
| Item No. | mm | CXK32 |
| Control spindle | mm | Servo drive and motor |
| Max.chuck | mm | 32mm |
| Processing efficiency | pcs/min | 12pcs/min |
| Motor fot X/Z axis | 6N.M servo moto | |
| Rapid traverse X/Z axis. | m/min | 15m/min |
| Max.cutter head speed | rpm | 3000rpm |
| X/Z axis screw | ball screw | |
| X/Z axis guide rail | Linear ball guide | |
| Motor power of servo apindle | kw | 2.2KW 380V/50HZ |
| Positioning accuracy | mm | X/Z:0.015mm |
| Repeated Positioning accuracy | mm | X/Z:0.01mm |
| NC system | Siemens/Xindai | |
| Total weight | kgs | 1000kgs |
| Dimensions | mm | 1400X1050X1700mm |
About after sell service
Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused by machine itself design defect , we are responsible for it .we can provided free charge breaking part, .If machine breaking caused by humane factor , user need take responsibility for it , we will provided technical support.
About our online Service
24 hours online to solve any problem . Your email will be reply within 12 hours . Your satisfy is our pursuit .sincerely hope our cooperation .
Packaging Details: packed in wooden case, or customization
Delivery Detail: 30days after confirming the advance payment
