Home > Products > Rubber Machine > Popular sold rubber extrude machines

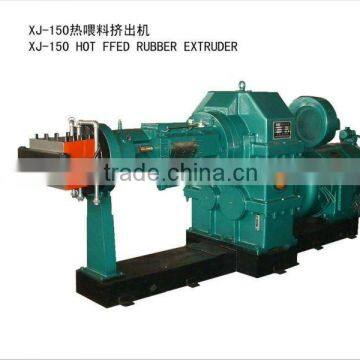

Popular sold rubber extrude machines
- 20 Set / Sets per Month
- Qingdao
You May Like
Product Details
| Type | Rubber Extruder | Place of Origin | Shandong, China | |
| Brand Name | yahua | Model Number | XJ |
Product Description
Specifications
1. Good quality rubber extruder2. Well sold rubber making equipments
3. rubber processing machines
fessional factory
The filter Rubber raw material enters the rolling mill to filter away impurities such as scrap iron, stones, etc.
- Screw made of special steel is with nitrogen treatment, durable.
- Jacketed type barrel can be cooled for cooling the rubbers effectively.
- Double head strainer to be quickly and easily exchanged.
- Smoothly running and high output.
- Equipped with die-head auto opening system when electric power is cut off.
Technical Parameters :
Parameters/ Version | XJ-65 | XJ-85 | XJ-115 | XJ-150 | XJ-200 |
Screw outer diameter(mm) | 65 | 85 | 115 | 150 | 200 |
Length-diameter ratio | 4 | 4.3 | 4.8 | 4.43 | 4.35 |
Compression ration |
| 1.3 | 1.3 | 1.34 |
|
Screw rotation speed (r/min) | 20.27.35.47 | 28.40.56.80 | 33.46.60 | 27-81 | 22.4-67.2 |
Power (kw) | 7.5 | 11/15 | 22 | 18.3-55 commutator machine | 25-75 commutator machine |
Product capacity (kg/h) | 50-80 | 70-210 | 100-420 | 700-1200 | 1500-2200 |
Steam pressure (Mpa) | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2 | 0.2-0.3 |
Cooling water pressure (Mpa) | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2 | 0.2-0..3 |
Compress air pressure (Mpa) |
|
|
|
| 0.3-0.6 |
Size (l*w*h) (mm) | 1630*604*1050 | 2050*700*1200 | 1630*604*1050 | 3411*814*1470 | 4564*1800*1750 |
Weight (nohead) | 1200 | 2500 | 3000 | 5000 | 8000 |
Contact Us
- Qingdao Yahua Machinery Co., Ltd.
- Contact nameLing Zhuang Chat Now
- Phone86-532-83132191
- AddressWangtai town,Jiaonan,Qingdao, Qingdao, Shandong
