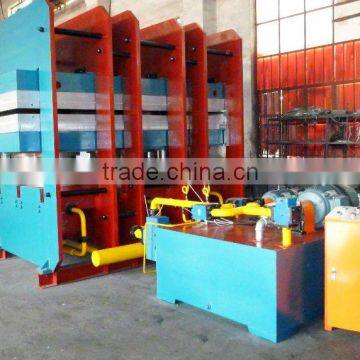

Hot!! Best Cost Performance O-Rings Vulcanizing Machine in Qingdao
- 50 Set / Sets per Month
- Qingdao
You May Like
-
Plate Vulcanizer/Rubber Production Mould Press Plant/Rubber Mat Manufacturing Machine
-
Tyre Curing Press/Auto Rubber Article Vulcanizing Press/Rubber Products Mould Press
-
XLB 80T Column Hydraulic Rubber Press Moulding Machine/Rubber Sports Protection Material Making Machine/Rubber Forming Machine
-
Natural Rubber Production Mould Press Plant/Rubber Mat Manufacturing Machine
-
Column Rubber Curing Press With The Best Seller Model/Auto Rubber Moulding Press/Rubber Shoe Sole Vulcanizing Press
-
Hydraulic plate rubber machine for Lab.
Product Details
| Condition | New | Type | Vulcanizer | |
| Place of Origin | Shandong, China | Brand Name | YaHua | |
| Model Number | XLB-D | Voltage | According to your voltage | |
| Power(W) | According to the machine | Dimension(L*W*H) | According to the machine | |
| Weight | According to the machine | Certification | ISO9001, ISO9001:2008 | |
| Warranty | one year |
Product Description
Specifications
standard rubber belt vulcanizer1.use the best Q-235 model steel
2.LED time shower and controller
3.water cooling
O-Rings and Sealing Washer Vulcanizing Machine in Qingdao
Main technical parameters
Type
Technical requirement |
XLB1000×1000×2Q |
XLB1200×1200×2Q |
XLB1400×1500×1Q |
XLB1200×2700×2Q |
XLB1600×6000×1Q |
XLB-Q1200×1200 |
XLBE-Q1600 ×1500 |
Total pressure(MN) | 2.5 | 3.15 | 5 | 7.5 | 24 | 3.15 | 5 |
Plate distance(mm) | 200 | 300 | 450 | 300 | 400 | 450 | 450 |
Working layer number | 2 | 2 | 1 | 2 | 1 | 1 | 1 |
Unit area pressure of hot plateMpa | 2.50 | 2.19 | 2.38 | 2.31 | 2.50 | 2.19 | 2.08 |
Plunger stroke(mm) | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
Heating mode | Staam/oil | Staam/oil | Staam/oil | Staam/oil | Staam/oil | Staam/oil | Staam/oil |
Main motor power(KW) | 5.5 | 5.5 | 11 | 18.5 | 26 | 11 | 11 |
Size(lengt×width×height)mm | 1490×1000×2510 | 1835×1200×2600 | 2150×1500×2900 | 1780×2890×2800 | 6300×2500×3200 | 1200×1800×2140 | 1500×2400×2600 |
Frame form | Frame | Frame | Frame | Frame | Frame | Jaw | Jaw |
Features:
1. High speed open/close mold, high production efficiency, low mold-locking speed, protect mold.
2. Adopt new sealing material, excellent seal and long life.
3. Matching-advanced oil way reduces energy consumption.
4. Structure is simple; Application is wide and easy to be operated.
We can produce different sizes according to your parameter requirement. and we allow proper discount according to the quantity you oder.
We feel confident that you will find our product with high quality and reasonable price.
