ISO Approved With Efficient PSA Nitrogen Generator Machine
- Wuhan/Shanghai
- T/T
You May Like
-
High Production and High Purity of PSA Nitrogen Generator
-
Advanced Technology and MINI Type of PSA Nitrogen Generator Machine
-
Industry and Leading Manufacturer of PSA Nitrogen Generator
-
High Quality Air Separation PSA Nitrogen Plant
-
PSA Nitrogen Generator Manufacturer Professional
-
High-purity and ISO Certification PSA Nitrogen Plant
Product Details
| Place of Origin | Hubei, China | Brand Name | HYT | |
| Model Number | CPN59-500 | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Welcome to >> WUHAN HENGYETONG GAS EQUIPMENT CO., LTD

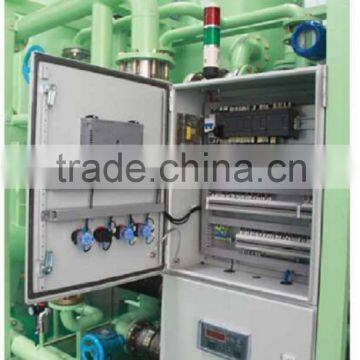

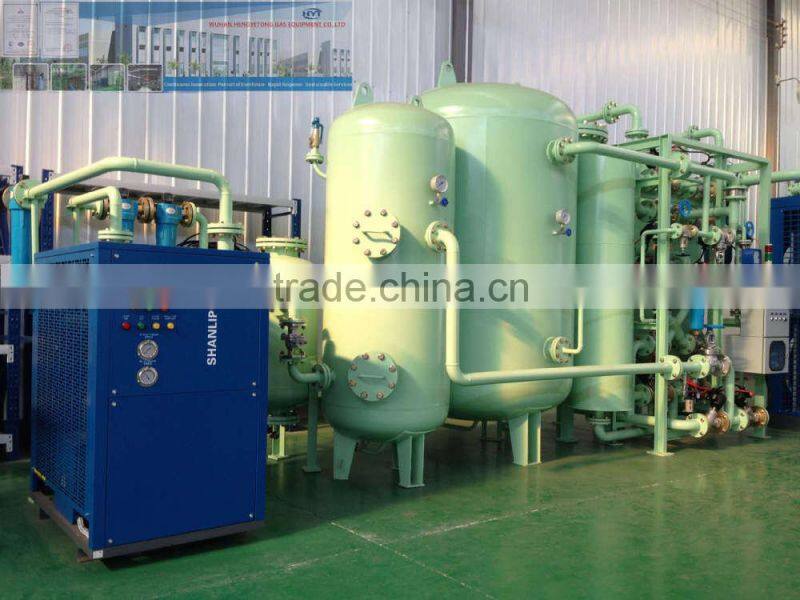

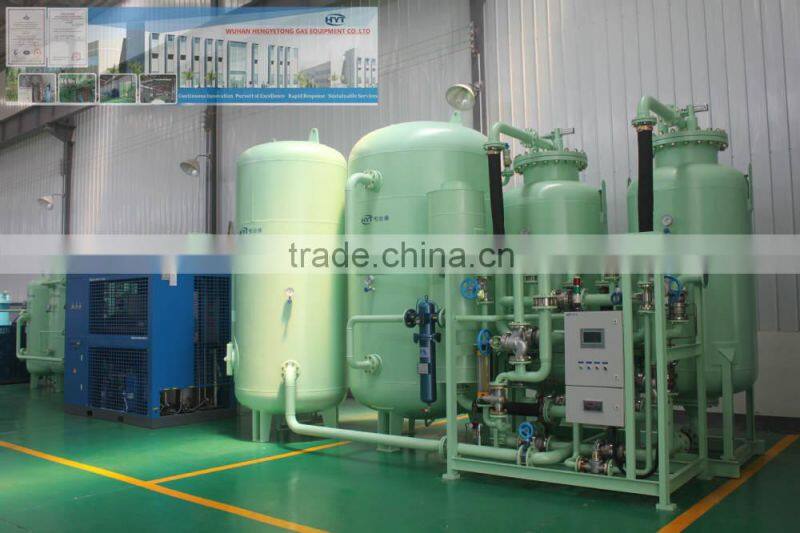

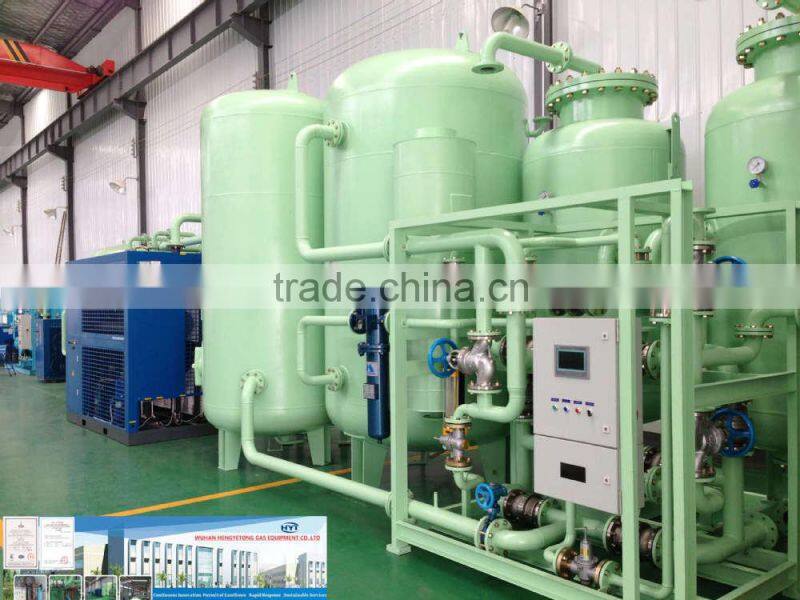

PSA Nitrogen Generator Sample products

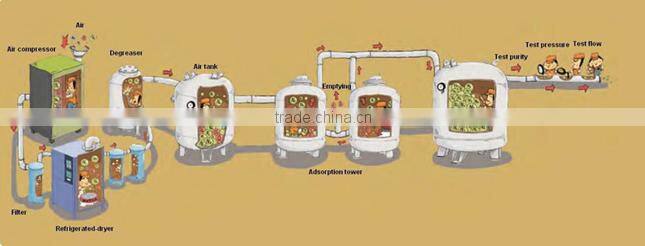

PSA Nitrogen Generator Flow Chart
Nitrogen Generator Specification
| Dimensions (cm) | weight | |
| Model | L*W*H | KG |
| PN-150 | 120*60*170 | 550 |
| PN-200 | 130*60*170 | 700 |
| PN-250 | 140*80*185 | 900 |
| PN-300 | 140*80*200 | 1100 |
| PN-350 | 155*90*200 | 1300 |
| PN-400 | 160*90*210 | 1500 |
| PN-450 | 160*100*210 | 1700 |
| PN-500 | 180*110*210 | 1900 |
| PN-550 | 180*120*225 | 2200 |
| PN-600 | 180*120*250 | 2550 |
| PN-650 | 200*130*270 | 2900 |
| PN-700 | 220*130*270 | 3200 |
| PN-800 | 240*150*270 | 3500 |
| PN-900 | 240*170*300 | 4200 |
| PN-1000 | 260*180*330 | 5100 |
| PN-1100 | 300*190*350 | 6000 |
| PN-1200 | 300*200*370 | 7200 |
| PN-1300 | 320*220*380 | 8500 |
| PN-1400 | 340*230*400 | 9800 |
| PN-1500 | 360*240*430 | 12000 |
| PN-1600 | 3800*280*520 | 16000 |
| PN-1800 | 4200*300*560 | 21000 |
| PN-2000 | 4600*320*600 | 28000 |
***Remark: 7.0Barg Adsorption Pressure; Can be customized according to customer requirements;
One sample model of Nitrogen Generator
| Dimensions (cm) | weight | |
| Model | L*W*H | KG |
| PN-200 | 130*60*170 | 700 |

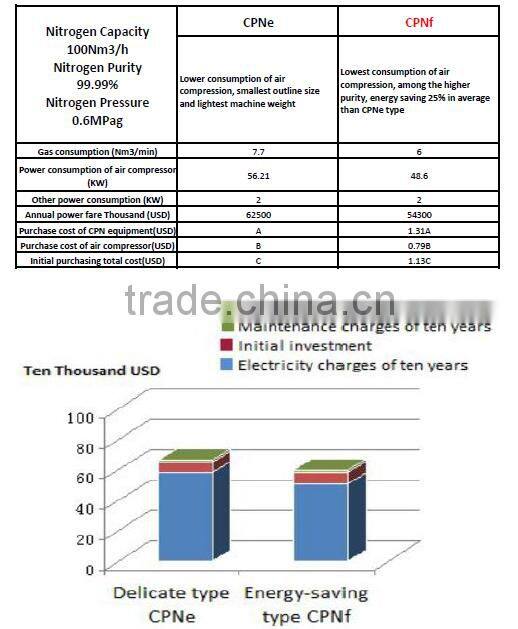

| Delicate model(CPNe) | Enegy-saving model(CPNf) | |||
| Oxygen(%) | Nitrogen (m3/h) | Air (m3/h) | Nitrogen (m3/h) | Air (m3/h) |
| 3 | 24 | 48 | / | / |
| 2 | 21 | 45 | / | / |
| 1 | 17 | 40 | / | / |
| 0.5 | 15 | 38 | 8 | 19 |
| 0.1 | 10 | 33 | 6 | 17 |
| 0.05 | 9 | 33 | 5 | 16 |
| 0.01 | 6 | 28 | 4.2 | 14 |
| 0.005 | 5 | 26 | 3.6 | 14 |
| 0.001 | 3 | 22 | 2.4 | 12 |
| 0.0005 | / | / | 2 | 12 |
** All N2 quantities are based on 20℃ and 1013mbar(a).

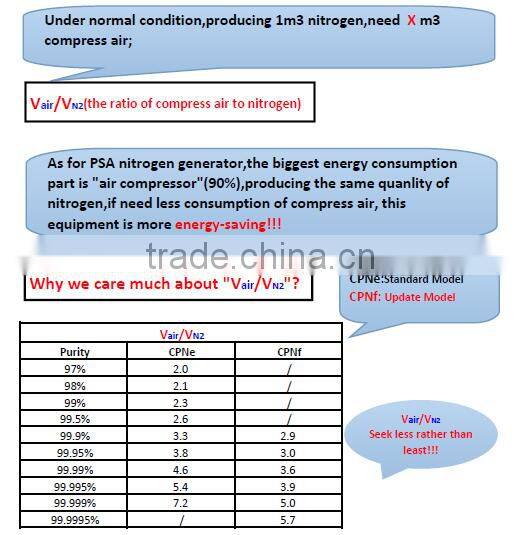

How to choose the suitable machine?
Company show

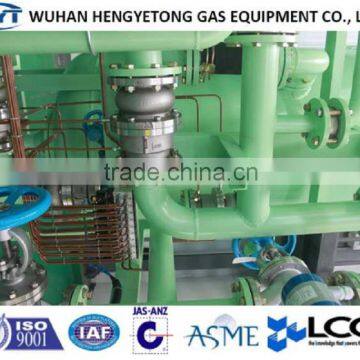

Certificate of Honor
Packaging & Shipment
1.Delivery time
Generally 40-60 working days after the order confirmed;
2.Packaging
1) Custom package request is appreciate.
2) Standard package: Packaged in plywood case and placed on plywood skid;
