Power Splitter 4 Way GPS Splitters

Eliminate the cost of multiple antennas and long cable runs in your wireless base stations, Designed to meet the

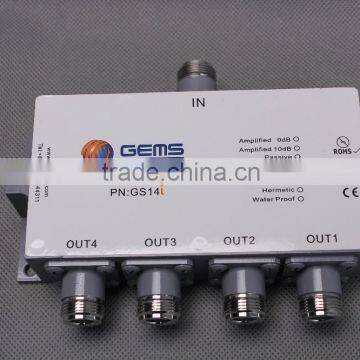

demanding, high reliability requirements of the wireless infrastructure market. The GEMS GS14i IS a high performance
GPS signal splitter that can be configured to monitor the GPS antenna current , providing and alarm indication if the
antenna is not operating to spec. The GS14i also features an optional antenna DC bias “Pick-&Choose” circuit which
allows for active antenna DC input to be applied to any or all of the RF outputs, With this option ,one DC voltage will
be chosen to power the antenna while the other input will be switched to DC loads, if the selected DC bias input
should fail, the DC bias will be automatically switched to another DC input so as to ensure an uninterrupted supply to
the active antenna. The GS14i man be configured as a passive or an active device, giving the network engineer the
flexibility to specify the device gain and port-to-port isolation, The GS14i may also be ordered with surge protection on
all five ports and in a sealed housing sufficient for many years of Operation in external environments.

Design For Wireless Infrastructure Applications

High Isolations approximately 10dB

Optional Antenna Current Monitor and Alarm

Optional Antenna DC Bias Select

Pole-mount Environmental Housing Available (IEC 529 level IP55)
Surge Protection Available(Tested to EN61000-4-5)


Electrical Specifications, Operating Temperature -40 to 85°c

Notes:      (1)Note that proper RF performance, the GS14i must have all RF ports terminated into a 50Ohm coaxial cable
system or a 50Ohm load.
(2)Custom gain option available
(3)Maximum current available from the DC source through the GS14i when output of GS14i is short circuited.
(4)Open circuit and Short Circuit Current (Ioc,Isc)may be specified by the customer within the specified range.

(5)In-rush current shall not exceed 3A or exceed Isc for greater than 1ms

 [ Performance Data]

                                                       port  1

                                                        port   2

                                                                 port   3

                                                                  port    4


[ Mechanical]
