Dual antennas input 32 way GPS power splitter with antenna alarm

Product attributes

• Automatic or Manual Antennas Switching Capability;
• Gain: 0~31dB step adjustable, 1 dB step (Optional);
•  Antenna status monitoring and warning;
• Output Ports status monitoring and alarm function (Optional);
• -48V DC, 12V DC dual power support ;
• Show information of GPS/Beidou in time;
• High Isolations >30dB @ 0dB

Antenna selection description

          Powered hardware, the software began to calculate the signal strength of antenna 1and antenna 2, after comparing the intensity of the two input signals automatically select the high signal intensity of the antenna input. When two input antennas strength less than 34dB, according to the number of switches and the switching frequency of switching continues until the switching frequency greater than 140 times. When started with a good choice of antenna, the system continues to signal detection, when the signal strength is too low or the antenna failure, the automatic starting antenna selection logic. Holding the antenna 1 priority, it can delay the service life of the equipment.

 Description

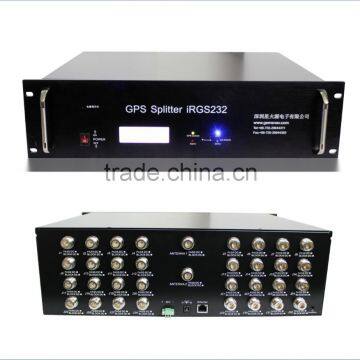

       The iRGS232 GPS Splitter is a dual-input, thirty two-output GPS device. The dual input ports connect two GPS receive antennas. The outputs ports grant up to 32 GPS receives signal access at one time .When entering the GNSS signal system management terminal to set the IP, the software can display the power of each port , the number of GPS visible satellites and the value of C / No , the number of Beidou visible satellites and the value of C / No .

       This product typically finds application where an input from an active GPS roof antenna is split evenly between thirty two receiving GPS units. Usually the iRGS232 is configured with an 12V input (-48V telecom power input also available). In this scenario, the iRGS232 can be configured to pass DC from an RF output to the antenna input port in order to power an active GPS antenna on that port. Output ports(J2-J32) would feature a 200 Ohm DC load to simulate an antenna DC current draw for any receiver connected to those ports.

 Product detail

• Front Pannel

• Back Pannel

• Power

Dual power supply design, power supply 48V DC and 12V DC power supply support, to choose from, such as access to work when the 48V power supply, the 12V power supply is not access; while 48V and 12V power supply has reverse polarity protection, namely when the power negative reversed, the device will not burn, it has a protective function.

Electrical Specifications, Operating Temperature -20 to 65°c, Storage Temperature -30 to 80 °c

 Operation instructions

 1. Open the power to access ANT2, ANT1 port antenna, connect the network serial port to the PC port.

       Install and open “GNSS signal system management terminal”software, login.
       User:admin
       Password:admin

       Click on the "Login" sign on; "Exit" exit

2. User management

    File—> User Managerment

3. IP set

     Set—>IP Set

4.  Antenna selection and status display

       In the below and to the right of the antennas selection bar for active antenna selection and state, read the "auto" selected automatically signal the better antenna access, Ant1 is specified using the wire 1 access, ant2 "for the specified using antenna 2 access, click the" read "read antenna can be seen when using the antenna pattern.

5. Antenna operation status display

      At the top left of the interface of the software, input port status bar for the antenna operating status, real-time displaying the access for which antenna and access antenna operation and state representation bar sketch for antenna operating status, Green said normally, red represents a short circuiting, Black said the road. If the antenna open or short circuit, the front panel of the machine GPS Locked green light is off, Alarm red light flashes to indicate alarm, PC-side reading antenna operating state shorted or open.

6.   GPS Information

      GPS information bar graph for the received satellite signal real-time display and the right edge of the chart three options "GPS L1 only" to show only the GPS L1 satellite signal chart, "Beidou2 B1 only" to show only the compass B1 satellite signal chart, "mixed mode" for the two charts show.

Mechanical

Frequency reference table:

Warranty:
1. 1years warranty for the products.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead
