Power Splitter 21dB 3 way GPS Splitters

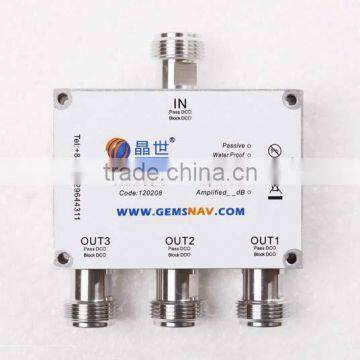

 The MGS13 GPS splitter is  a one-input, three-output GPS device. This product typically finds application where an input from an active GPS roof antenna is split evently between four receving GPS units. In this scenario, the MGS13 can be configured to pass DC from an RF output(J1) to the antenna input port in order to power an active GPS antenna on that port. The second and third RF outputs(J2, J3) would feature a 200 Ohm DC load to simulate an antenna DC current draw for any receiver connected to those ports.

• Design For Wireless Infrastructure Applications;
• Gain :  0dB, 21dB And Passive Version Available;
• Response For:

              GPS:L1,L2,L2C,L5;

              Glonass:G1,G2;
              Galileo:L1,E1,E2,E5(E5a,E5b),E6;
              Beidou2:B1,B2,B3;
              IRNSS L1,L5;

              OmniStar

• High Isolations > 28dB

Electrical Specifications, Operating Temperature -40 to 85°c

[Mechanical]

Frequency reference table:

Warranty:
1. 1 years warranty for the products.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free.
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead.
