Dual antennas 16 way Rackmount GPS splitters

• Dual anttennas input, Inteligent antennas switch;
• Antenna fault alarm;
•  Embedded Antenna Health Sensor and antenna Fault Indicator Panel
• Step gain adjustable: 0-30dB, 1dB step;
• -48V DC input and 12V DC input ;
• DC output management on outups;
  • Configuration via console software;
  • Block DC (With 200 ohm load)
  • Passs DC (With short protection)
• High Isolations >30dB @ 0dB

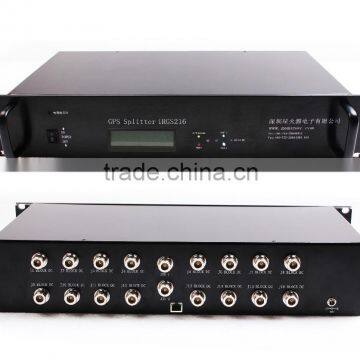

The iRGS216 GPS Splitter is a two-input, sixteen-output GPS device. When entering the GNSS signal system management terminal to set the IP, the software can display the power of each port , the number of GPS visible satellites and the value of C / No , the number of Beidou visible satellites and the value of C / No .

The iRGS216 typically finds application where an input from an active GPS roof antenna is split evenly between sixteen receiving GPS units. In this scenario, the iRGS216 could be configured by user to pass DC from an RF output (J1-J16 ) to the ouput ports or Block DC . Output ports(J1-J16) would feature a 200 Ohm DC load to simulate an antenna DC current draw for any receiver connected to those ports.

Redundancy is acquired through the use of a primary antenna and a backup antenna. The ability of the iRGS216 to switch antennas allows all connected GPS devices to remain fully functional in the event of an antenna failure. The iRGS232 can manually or automatically switch the antenna port . Faults are indicated on the front panel LED and status via ethernet interface on the console software.

Within the iRGS216 is an antenna health sensor and an embedded antenna switch. The sensor monitors the health of the primary antenna connected to the splitter. Based on the information provided by the sensor, the splitter will automatically switch to the secondary antenna in the event of a failure with the primary antenna.

If the failure in the primary antenna is resolved, the splitter will automatically switch back to the primary. The embedded switch has been designed so it can be controlled externally via ethernet port or an external toggle switch that can override the internal automatic switch mechanism .

Electrical Specifications, Operating Temperature -40 to 85°c

[Product Specifications]

Warranty:
1. 1years warranty for the products.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead
