Indoor GPS signal repeaters kit

1. Functional Description

GL1 is a repeater operates by receiving GPS satellite signals with an antenna located outside the building and re-radiating the signals into the indoor area or covered space where satellite signal cannotreach.

 GL1 is a single point GPS repeater, one transmitting antenna transmit GPS L1 signal. This solution offer adjustable test signal to GPS receiver.
If need extend the system, you can apply multi-system receiving antenna and sending antenna,which can support multi-system, multi-waveband satellite signal receive and transmit, so as to cover satellite signal indoor.

2. Typical Application:

• For GPS products testing

         For testing the cell- phone with GPS, PND, car navigators, tracker, survey products, etc.

• For the purpose of GPS signal covering

        Car parks, lab, trade shows, public transportation etc.

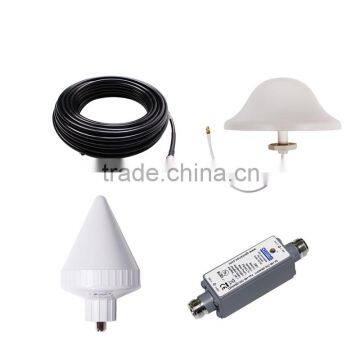

3. Kits include

3.1 Amplifier GA40

Specification:

3.2 GPS antenna(Receiving antenna): TIMING 4000

3.3 Transmiting antenna:GTA10

3.4 Cable Assembly

3.4.2 Select Connector

4. Installation guide

5. Fixing of GTA10

Warranty:
1. 1years warranty for the products.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free.
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead

  GL1 GPS repeater fault location and remove:

    First: Determine whether the GA40 is energized, whether it connects to the power supply and
power-up to GA40, as GA40 hasn’t power light. You can test the voltage between input axis and shell, if it’s about 5V,power supply was ok,GA40 was also works ok. Or else, check the power socket to assure the contact was ok.

    Second: If it’s 5V at the input of Amplifier, you need to check whether the fixing is steady between GAT10 and the cable.

    Third: If the below two step were ok, please check the outdoor antenna Timing4000.You can screw the port which connect Timing4000 and cable(carefully screw, not unplug strongly).Notice: when screwing the cable connector, you should make sure to screw the iron pipe, maintain the antenna and cable moveless, which avoid to screw off the cable. After riving, check the voltage between axis of the cable connector and the outer shielding layer to make sure it’s 5V.If no voltage, the circuit has fault,please contact our technical support. If 5V,the antenna Timing4000 can be suspected.(In fact, this case hasn’t appear in our engineering projects.
