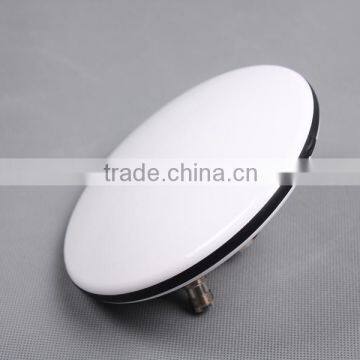

Multi system GPS satellite receiving antenna

  BGG39 is a set of GPS L1 & L2 and GLONASS G1 & G2 dual-band double system measurement antenna, can be widely used in geodesy, bridge construction, marine surveying, underwater topography measurement etc. The antenna using multi feedpoint design, ensure the antenna phase center and the geometric center of the coincidence, improve the accuracy of measurement. Built-in low noise amplifier module, through the multi-stage filter to eliminate interference signal ,ensure the normal work in harsh electromagnetic environment.

Frequency: GPS L1 &L2, GLONASS G1 & G2

Gain: 39dB

Operation voltage: 3V~15VDC

Within vertical plane wide-angle, phase center is stability

Double satellites, double frequency antenna

LAN amplifier including band filter

Specifications:
 Frequency [MHz]                          1565MHz~1615MHz/1217MHz~1257MHz
 Input impedance:                        500hm
 Gain [dBi]                                     39±2(LNA included)
 Polarization                                  right-hand circular polarized(RHCP)
 Axial ratio[dB]                              <3dB
 Horizontal coverage angle            360°
 Input(VSWR)                             ≤2.0
 Gain of Antenna                           >5.0dBi
 Phase centre error [V]                  ±2mm
LNA Specifications:
 Frequency (MHz)                          1565MHz~1615MHz/1217MHz~1257MHz
 Gain (dB)                                     35 dB
 Gain flatness (dB)                        ±1 dB
 Noise figure(dB)                           ≤2 dB

 Out(VSWR)                                   ≤2.0
 Input(VSWR)                             ≤2.0
 DC Voltage [V]                             3-15V
 DC Current [mA]                          48±10mA
 Differencial transmission delay   <10nS
Mechanical Specifications:
 Dimension [mm]                          Ø140×58
 Connector                                   TNC-C-K
 Mounting:                                  5/8 screw mounting
 Operation temperature [℃]           -40~+85
 Reposition temperature [℃]         -55~+85

 Waterproof Operation Details:

Multi-System antenna installation, waterproof operation deatils:

       1.Fit hot-melt sleeve over the RG8 line;

       2.Connect the connector of the RG8 cable to the connector of the BGG39 receiving         antenna;

       3.Waterproof tape to seal the joint position, and then hot air gun to heat the tape blowing;

       4.The hot melt casing on the push support frame, and then heated with hot air gun, you can melt the waterproof tape into a protective film, play a role in water.

Installation Diagram

Dimension:

Frequency Reference Table:
