Home > Products > New Products > 3 Layers 2000L Plastic Water Tank/bottle/pallet Full Automatic Extruction Blow Moulding Machine

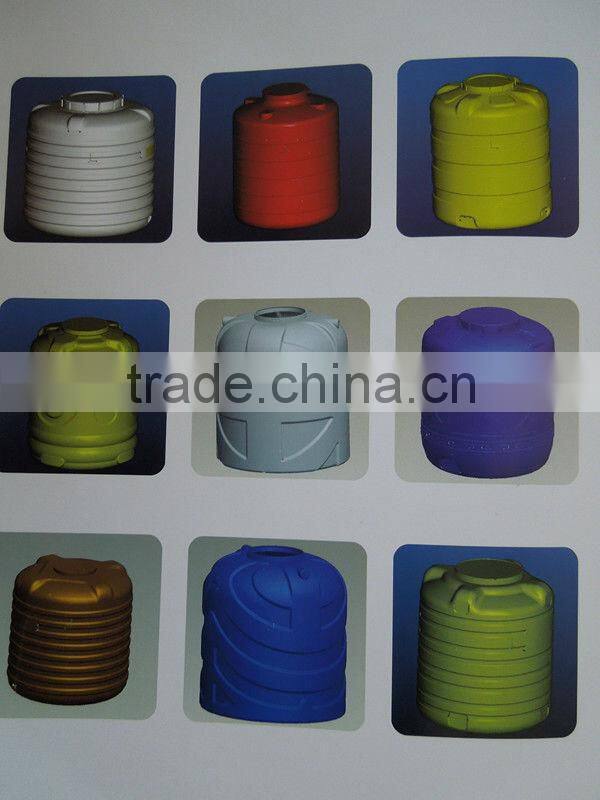

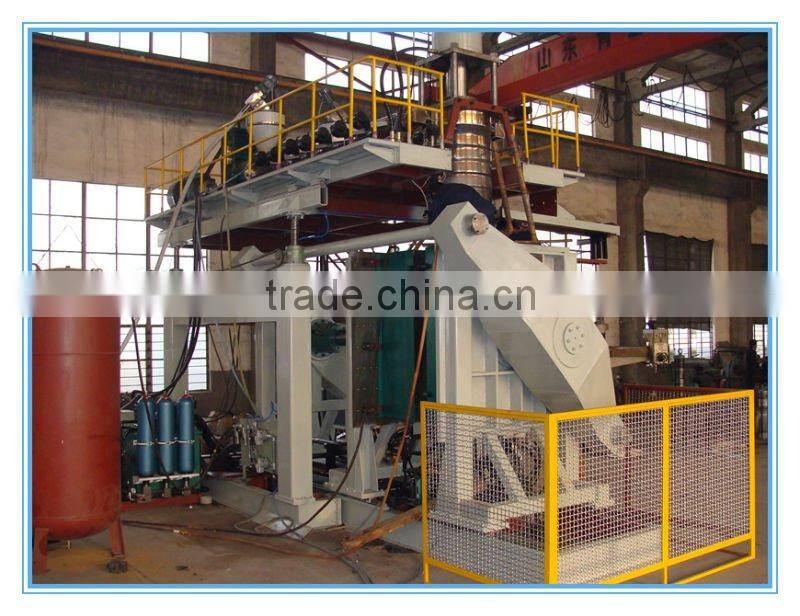

3 Layers 2000L Plastic Water Tank/bottle/pallet Full Automatic Extruction Blow Moulding Machine

FOB Price

US$ 24,000 - 24,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	sehenda
Model Number	SKJ	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

1.PE/HDPE bottle/pallet plastic blow moulding machine
2.desinged and manufactured according to German standards.

Technical specification
ITEM	UNIT	SKJ2000L 3 LAYERS
Max. product volume	L	2000
Screw diameter	MM	Φ110*3
Screw L/D ratio	L/D	30:1
Screw drive power	KW	90KW
Screw heating capacity	KW	60
No. of heating zone	ZONE	21
Output	KG/H	500
Oil pump drive power	KW	45
Clamping force	KN	1400
Mould open spacing	MM	3200
Mould thickness	MM	1220
Capacity	L	70
Die heat capacity	KW	45
No. of heating zone	ZONE	5
Die head material	38CRMOALA(accumulator, lining, piston, die)
Control action	MITSUBISHI PLC
Blowing pressure	MPA	0.6
Cooling water pressure	MPA	0.2
Size of machine	(LWH)MM	720050006000
Weight of machine	MT	36
