HSHM300BF-C Profile Wrapping machine(Roll and Scrap coating)
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
-
HSHM450BF-E1 Profile Wrapping machine( cold glue and Scrap-coating)
-
HSHM450BF-B Profile wrapping machine(hot melt glue)
-
HSHM300BF-C PVC Wrapping Machine
-
HSHM300BF-C28 PVC Wrapping Machine
-
HSHM300BF-D pvc profile laminating machine with roller glue coater
-
HSHM300BF-C1 wood plastic profile wrapping machine
Product Details
| Place of Origin | Shandong, China | Brand Name | hongsenhaomai | |
| Model Number | HSHM300BF-C |
Product Description
Specifications
1,multifunctional2,rolling&scraping gluing system
3,easy control panel
4,new condition
HSHM300BF-C Multifunction Profile Wrapping Machine

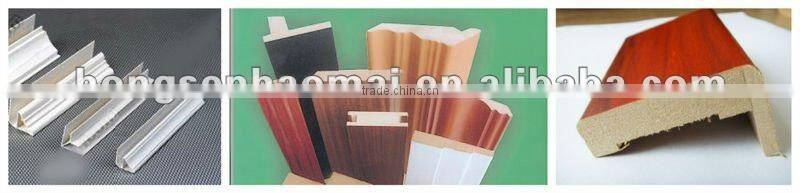

Application for: Application in :kick board ;set lines of door&window;railings of stairs;top scripts;door frames;mirror frame;painting frame;drawer bottom;composite door set;pvc porous material;wood-like material;aluminum-steel door&window;floor and other material to wrap pvc or wooden veneer.
Technique Parameter:
Technical data | HSHM300BF-C |
Max.sheet width | 300mm/450mm |
Work piece length | 200mm-limitless |
Sheet speed | 0-25m/min |

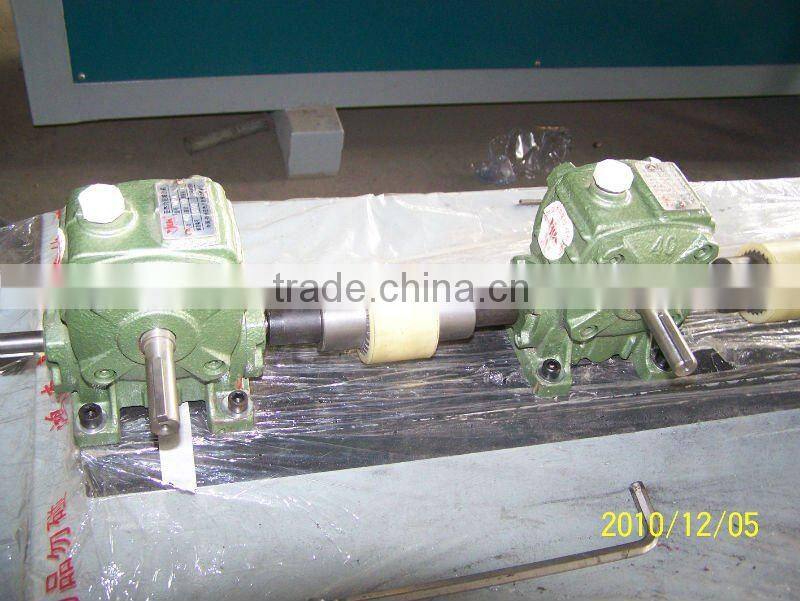

Conveying style | worm gear |
Total power | 8.8kw |
Apperance and size(longer) | 5400*750*2000mm |
Total weight | 1800kg |
Working voltage | 380v/50hz |
Main Feature:
1.It combines the advantage of scrap-coating and roll-coating system.scrap-coating is used for water based glue and wrapping for glossy surface of plasticsteel material; rolling coating is used for curved surface such us wooden material.

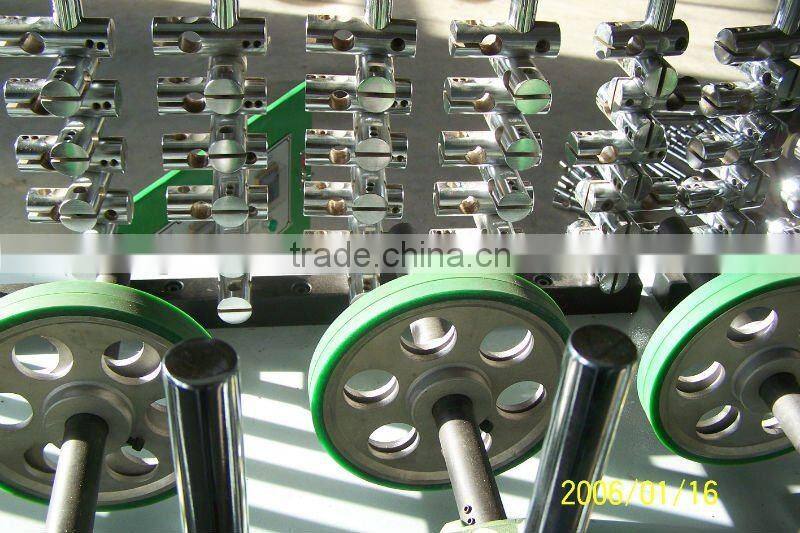

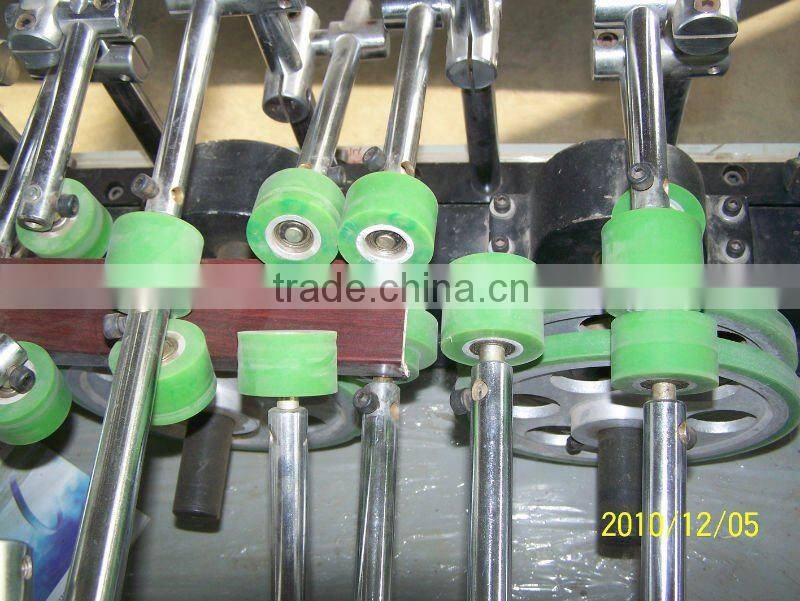

2.All the pressing rollers adopt imported silica gel and aluminum wheel.Which are non-cohesive and durable.
3.And joint lever&upright posts are all solid which is stable and durable.
4.It is the best choose for the profile line to wrap PVC and paper.
