Product Details
| Brand Name | LINK-MI/OEM | Model Number | LM-K103TRU | |
| Place of Origin | Guangdong, China |
Product Description

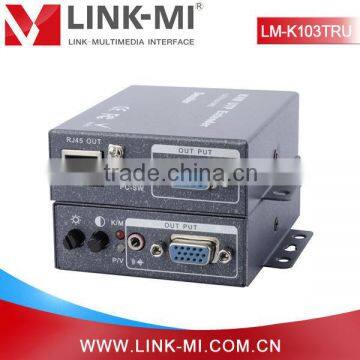

LM-K103TRU For Local and Remote Monitor,1000ft VGA KVM Extender over Cat5 with USB
Model Number: LM-K103TRU
Keywords: VGA KVM Extender over Cat5 with USB
Introduction: VGA KVM Extender over Cat5 with USB
VGA Video KVM Extender 300m is one of our independent development products. The newest promoted KVM Extender has high quality of imagine, remote keyboard and mouse action does not have the time delay. It may widely apply in the computer, monitor, security, multimedia teaching systems and so on. It could extend keyboard, mouse and video ports on computer up to 300m.It promotes the function of anti-thunder and antijamming to make sure the security and stability.
Features
♦ It can extend the power switch of the computer, keyboard, mouse and video port max of 300m
♦ It can be switched from remote monitor to local monitor or switched from local monitor to remote monitor by the keystroke on the Sender or SCROLL on the local keyboard
♦ Use the single cable (CAT5,CAT5E,CAT6), the cost is inexpensive
♦ It supports (USB) keyboard and mouse, it supports (VGA) port monitor
♦ It can remove and insert the local and remote keyboard and mouse
♦ Power on computer use the emulational keyboard and mouse
♦ It supports DOS, Windows, Linux, Unix system
♦ It does not need a driver, it is simple to install
♦ The remote keyboard and mouse display is in real-time
♦ The anti-jamming is strong
♦ The anti-lightning and anti-invasion is strong Cascade operation for increasing the distance
♦ Index of anti-lightning and anti-invasion: withstand air-discharge 15KV, contiguity-discharge 8KV
SPECIFICATIONS
Product Name: | VGA Video KVM Extender 300m | |
Product Model No.: | LM-K103TRU | |
Product Feature: | Transmit VGA video and USB signal over one network cable 300M,Manual regulation, Lightning protection. | |
input connector: | 1-ch VGA+ 1-ch USB | |
output connector: | 1-VGA, 2-USB | |
local output: | HD15PIN(VGA) | |
bandwidth: | 100M | 350MHZ |
200M | 500MHZ | |
300M | 680MHZ | |
input level range: | 0.5-2.0Vp-p | |
input level error: | less than 3mV | |
input impedance: | 75Ω | |
output impedance: | 75Ω | |
echo ullage: | -30dB@5MHz | |
Max DC compensation: | ±5mV-0 | |
SNR: | 60dB | |
Connector standard: | HDB15,USB,Mini-DIN6,RJ45 | |
Video standard: | VGA,SVGA,XGA,SXGA,UXGA,LCD | |
Cable standard: | CAT5,CAT5E,CAT6 UTP | |
Power adapter: | DC12V/1A | |
operational temperature: | -25℃~+70℃ | |
deposited temperature: | -40℃~+80℃ | |
relative humidity: | 0-95%(non-condensing) | |
MTBF: | >30000 hours | |
Product Display
Packing Contents: LM-K103TRU For Local and Remote Monitor,1000ft VGA KVM Extender over Cat5 with USB
1. VGA Video KVM Extender 300m transmitter receiver
2. 12V/1A power adapter
3. USB cable
4. User manual
