Product Details
| Place of Origin | Guangdong, China | Brand Name | LINK-MI/OEM | |
| Model Number | LM-S21R |
Product Description
LINK-MI LM-S21R HDMI 2x1 Switcher With PIP 1080P HD Video
Model No.: LM-S21
Product Type: HDMI 2x1 Switcher
Keyword: HDMI 2x1 Switcher
HDMI 2x1 Switcher With PIP 1080P HD Video
Introduction
This product HDMI 2x1 Switcher With PIP 1080P HD Video is a high performance 2 by 1 Multi-Viewer. It supports two High definition input source display on one screen. As a Multi-Viewer, it can display on one screen in 4 modes.
Features
1.Compliant with HDMI 1.3a,HDCP 1.2
2.Supports multiplexed HDMI 2-input and 1-output and 4 display modes
3.Supports up to 1080p High Definition resolution
4.Support scaler up, scaler down function
5.Support multi output resolution
6.Support digital audio format LPCM/AC3/DTS
Specification
Video Bandwidth | 225MHz[6.75Gbps] |
Input Ports | 2 × HDMI (Female type) |
Output Ports | 1 × HDMI (Female type) |
Audio output | PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1 |
Input Resolution | 480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50/60Hz 1080i50/60Hz,1080p24/30/50/60Hz,800x600@60, 1024x768@60,1280x720@60,1920x1080@60 |
Output Resolution | 1080p, 720p, 1080i,1024x768,1360x768 |
ESD Protection | Human Body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) |
Power Supply | 5V/1A DC (US/EU standards, CE/FCC/UL certified) |
Dimensions | 70 mm (W)×140mm (D)×25 mm (H) |
Weight | 300 g |
Chassis Material | Metal |
Silkscreen Color | Black |
Operating Temperature | 0 °C~40 °C/ 32 °F~104 °F |
Storage Temperature | −20 °C ~ 60 °C/−4 °F ~140 °F |
Relative Humidity | 20~90 % RH (non-condensing) |
Power Consumption (Max) | 10W |

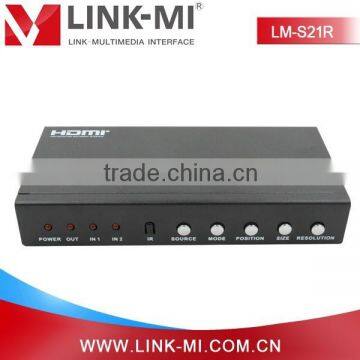

Panel Description
Product Overviews
Connection Diagram
Packing Contents
1. 1pcs HDMI 2x1 Switcher With PIP 1080P HD Video
2. 1pcs 5V1A DC Power adapter
3. 1pcs Operation Manual
4. 1pcs Remote Controller
5. 1 pair mounting ears
