Product Details
| Brand Name | LINK-MI / OEM | Model Number | LM-WHD100C | |
| Place of Origin | Guangdong, China |
Product Description

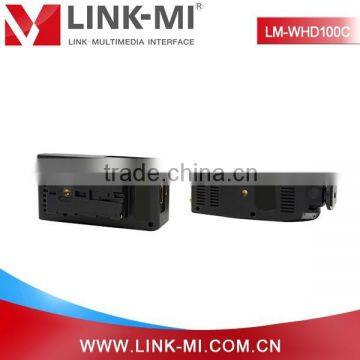

LINK-MI LM-WHD100C Full HD 1080p 5Ghz WHDI 330ft/100m Wireless HDMI Extender
Model Number:LM-WHD100C
Product Type: wireless hdmi transmitter
Introduction
LINK-MI LM-WHD100C WHDI 1080p 5GHz 100m Wireless HDMI Sender Receiver System, which includes one transmitter and one receiver, as widely use of live video transmitting, applied with the high-capacity Li-Battery, plug and play setting, are able to meet requirements of outdoor and indoor shooting. Especially, Wireless HD Transmitter will be much safer and bring more professional experience to you!
Features
1. Wireless HD Video Transmission for DSLR/DV
2. Support full-HD 1080p/60Hz video display with very low latency
3. Full-hardware for plug & play, no software needed
4. Up to 80m/260ft, effective range line of sight
5. Support external Li-battery supply for mobile convenience
6. Support Hot-shoe installation with 1/4 screw nut
7. Support audio input from external microphone
8. Hi-quality LCD screen display signal & battery status of product
Specification
Item | Transmitter | Receiver |
Transmission Frequency | 5GHz | |
Video Communication | MIMO | |
Modulation Mode | OFDM | |
Frequency Stability | ±20PPM | |
Bandwidth | 40MHz | |
Standard Protocol | HDMI 1.3, HDCP 1.2 | |
Video Format | 480p, 576p, 1080i, 1080p | |
Audio Format | PCM,DTS-HD, Dolby TrueHD | |
Transmission Power ( EIRP) | 14dBm | 15dBm |
Receiving Sensitivity | ≤-70dBm | |
System Latency | ≤30ms | |
Antenna | 2 External Antennas | Built-in Antennas |
Transmission Distance | Up to 80m(260ft), line of sight | |
Installation | Hot-shoe, 1/4 inch screw nut | |
Power Supply | 1. DC ( 6-17V); 2 Li-Battery ( SONY NP-F570/750/950) | |
Power Consumption | 5.5W | 5W |
Dimensions ( L*W*H) | 118x54x43mm | 118x60x45mm |
Operating Temperature | -10 to 50℃ | -10 to 40℃ |
With Li-Battery: 0 to 40℃ | ||
Storage Temperature | -40 to 80℃ | |
Operating Humidity | 15 to 85%RH | |
Panel Description
Connection and Diagram
Connection Diagram
Product Diagram
Packing Content:
1. Main Unit. Wireless HDMI Transmitter Receiver kit
2. 1pcs Standard HDMI Cable
3. 1pcs Standard Mini HDMI Cable 90°
4. 2pcs Antenna
5. 2pcs DC 12V 1A Adapter
