LINK-MI LM-HVY02 MIni Full HD Video HDMI to VGA + Audio Converter

HDMI to VGA + Audio Converter

Introduction

     LINK-MI LM-HVY02 MIni Full HD Video HDMI to VGA + Audio Converter, have 2 HDMI input and 15 pin HD-sub( VGA style ) jack  and audio output, can convert HDMI input to RGB/YPbPr/YCbCr. This product MIni Full HD Video HDMI to VGA + Audio Converter with a switch can choose RGB or component ( YPbPr /YCbCr ) output, supports HD format from 480i to 1080p.

Features

1.      Converts 2 HDMI inputs to 1 VGA/YPbPr and stereo audio output

2.      The converter can recognize the 2 input signals automatically, and you can also select 2 inputs by the source selection button

3.      It can convert HDMI input to RGB/YPbPr/YCbCr output with a 15 pin HD-sub (VGA style) jack.

4.      You can choose RGB or component(YPbPr/YCbCr) output with a switch (VGA  YPbPr)

5.      With Analog stereo audio 2.0 output

6.      Supports HD format from 480i to 1080p

Specification

Panel Description

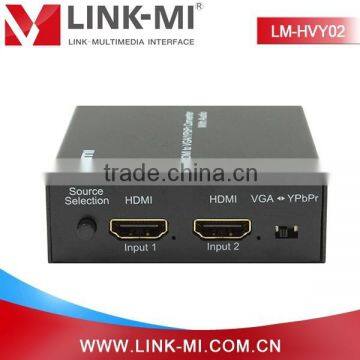

Product Overviews

Connection and Operating

1) Connect the HDMI signal sources (Such as PS3, STB etc) to HDMI input port of the converter.

2) Connect VGA output port to your VGA device (such as projector).

3) Connect VGA-YPbPr cable between VGA output of the converter and input port (YPbPr ) of your device (optional).

4) Connect the audio output to audio device by audio cable.

5) Insert the DC 5V power supply.

Connection Diagram

Packing Contents

1) Main Unit. HDMI to VGA + Audio Converter

2) DC 5V 1A Power Supply.

3) Operating Instructions

4) VGA to RCA cable
