LM-PCS01 Professional AV to SD/HD/3G SDI Converter Convert CVBS Input Signal to 3G/HD/SD SDI Output Signal
- Shenzhen
- Credit Card PayPal
You May Like
-
LINK-MI LM-SAV1 HD SDI Composite CVBS Converter Auto Video Mode Detection
-
2015 LINK-MI LM-SC5810HA BNC to hdmi/AV CVBS 1080P SDI converter for moniter camera
-
LINK-MI LM-PSD14 4-Port HD/3G SDI Splitter For Digital Video Switcher
-
Distribution Amplifier LM-SS14 1 Input 4 Output Audio Video SD/HD/3G SDI Splitter
-
LM-SS18 SD/HD/3G BNC SDI Signal Splitter/Repeater 1 In 8 Out, Split a Single SDI Source Data to 8 Video Display
-
LINK-MI LM-SS12 SD/HD SDI 1*2 Splitter/Distributor Box Distributes 1 SDI Input To 2 SDI Output
Product Details
| Brand Name | LINK-MI | Model Number | LM-PCS01 | |
| Place of Origin | Guangdong, China |
Product Description
Specification
AV to SDI Converter
♦ Standard CVBS Signal Input
♦ Optional 3G/HD/SD SDI Signal Output
♦ Support External Analog Stereo Audio Signals Embedded in SDI Signal
LM-PCS01 Professional AV to SD/HD/3G SDI Converter Convert CVBS Input Signal to 3G/HD/SD SDI Output Signal
Introduction
LM-PCS01 AV to SDI Converter, a dedicated device convert CVBS input signal to 3G/HD/SD-SDI output signal, integrated CVBS receivers and 3G / HD / SD-SDI encoder.
Simultaneously, LM-PCS01 AV to SDI Converter supports external analog stereo audio input signal embedded into SDI signal, and support "frequency-conversion" function, can "transform" the PAL / NTSC / SECAM and other CVBS input signal to SDI signal output in a fixed resolution, also can "up-converted" to HD SDI. By the way, Via the DIP Switch can Select the Output Resolution, easy to use.

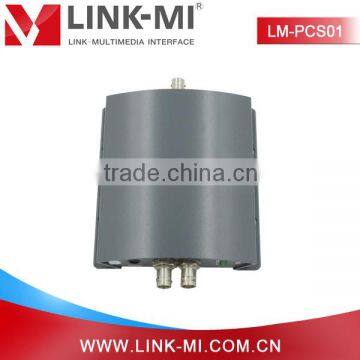

Product Picture
Model No.: LM-PCS01
Product Type: AV to SDI Converter
CVBS to SDI Converter
Features
♦ Standard CVBS signal input
♦ Optional 3G / HD / SD SDI signal output
♦ Optional 1080P / 1080I / 720P / 480I / 576I common resolution
♦ Optional 1080PSF / 720P 30/25/24 special resolution
♦ CVBS input signal adaptively
♦ Support external analog stereo audio signals embedded in SDI signal
♦ SDI output can be set as "frequency-Conversion"
♦ SDI output can be set as "fixed frequency"
♦ Special features can be customized
Specification
Name | AV to SDI Converter | |
Model No. | LM-PCS01 | |
CVBS Video Input | Signal | Standard CVBS Signal |
SMPTE | 27M | |
Connecter | BNC | |
Signal Amplitude | 800mv ±10% ( 75 Ω) | |
Impedance | 75Ω | |
Analog Audio Input | Input Signal | Analog Stereo Audio |
Digital Sampling | 48K | |
Impedance | 16Ω | |
Connector | Earphones | |
SDI Video Output | Output Signal | SD/HD/3G SDI |
Connector | BNC ( IEC169-8 Standard ) | |
Signal Amplitude | 800mv ±10% | |
Impedance | 75Ω | |
General Parameters | Power Supply | DC 5-12V |
Power | <2W | |
Dimension(L*W*H) | 141*102*30 mm | |
Control | DIP Switch | |
Net Weight | 0.3kg | |
Operating Temperature Range | 0-50℃ | |
Storage Temperature Range | -20 to 75℃ | |
Operating Humidity Range | 20-70%RH | |
Storage Humidity Range | 0-90%RH | |
Panel Description
DIP Switch Setting
Coding | Resolution |
0 | 1080I@50HZ |
1 | 1080P@60HZ |
2 | 1080P@50HZ |
3 | 1080I@60HZ |
4 | 1080P@30HZ |
5 | 1080P@25HZ |
6 | 1080P@24HZ |
7 | 720P@60HZ |
8 | 720P@50HZ |
9 | 720P@30HZ |
A | 720P@25HZ |
B | 576I@50HZ |
C | 480I@60HZ |
D-F | Reserved |
Connection and Operation
♦ Connect the ports in a right way
♦ Adjust to the device in a suitable resolution, turn on the power
Wiring Diagram
Packing Contents: AV to SDI Converter
♦ Main Unit. 1pcs AV to SDI Converter
♦ 1pcs DC 5V Power Adapter
♦ 1pcs User Manual
