There are four main kinds charcoal briquette making machines in my factory

Type-I : Punching type charcoal briquette making machine

(More details of punching type charcoal briquette making machine, please click the

following picture)

Brief introduction of punching type charcoal briquette making machine

According to different kinds raw material, punching type charcoal briquette making machine is also

named as honeycomb charcoal briquette machine. Punching type charcoal briquette making

machine has been widely applied in China for over 40 years. It is used to punch coal powder, charcoal

powder into coal/charcoal briquettes whose dimension is between 45-220mm, height between 10-120

mm, and used in stove for cooking, bbq, warming, etc.

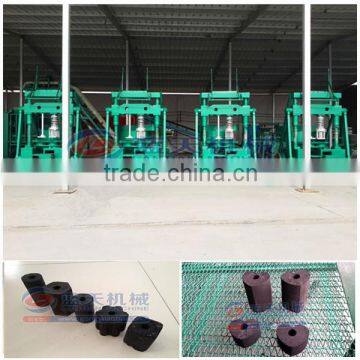

Delivery site of punching type charcoal briquette making machine

Different final charcoal briquettes made by punching type charcoal briquette making machine:

Briquettes' shape: Round shape coal/charcoal briquette with several holes(Diameter between 140-300mm)

Cylinder shape with a hole( diameter 50mm with a 15mm hole is the most popular size) Plum-blossom

shape with hole, square shape with several holes( the length are customized), hexagonal shape with a

hole, rectangle shape, etc.

Briquettes' size: The diameter or length is 45mm-300mm.

Briquettes' density: The density of coal briquettes can be adjusted according to your requirements

by changing the upper punching part.

Briquettes' burning time: The burning time is about 4-5 hours per small piece.

Main structure of punching type charcoal briquette making machine

1) Frame: The whole frame includes cast iron bedplate, motor base. The frame is the main skeleton entity.

2) Transmission part: This part consists of motor power, belt gear, gear, transmission shaft.

3) Feeding part: This part consists of moving shaft, hopper, mixer, turnplate. Under the help of mixer and

turnplate, coking coal powder will be feeded into the shaping drum.

4) Punching part: Punching part is the most important in whole honeycomb coal/charcoal briquetting machine

supplier,it consists of four slide bars, beam, punch, punch seat, moving pressure plate, spring, etc. When

honeycomb coal/charcoal briquetting machine supplier working, two gears moving and push upper punching

part puching down though pull rod, meanwhile, movale plate moving up and makes spring shorter, this makes

coal/charcoal powder into briquettes shape. The final coal/charcoal briquettes' density depends on pressure,

which makes by spring compresses movable plate.

5) Conveyor part: This part consists of transmossion rack, belt pulley, holder.

Characteristics of our punching type charcoal briquette making machine

1) All machines and all kinds spare parts are made by ourselves.

2) All connecting parts we use cooper spirals instead of iron spirals to make the punching type charcoal

powder shaping machine has longer service time.

3) All spart parts made by advanced technology, we use wire-cutting technology rather than normal cutting

technology.

4) It has position-guide angle to protect punching parts.

5) Shaping mold can be customized according to your demands.

Main parameter of punching type charcoal briquette making machine

Other kinds charcoal briquette making machine

Type 2: Roller press charcoal briquette making machine

If you are interested in this machine, please click the following photo!

Different kinds briquettes made by roller press charcoal briquette making machine

 Brief introduction of roller press charcoal briquette making machine

Roller press charcoal briquette making machine means we use briquette shaping machine who

has two big rollers to press fine coal/charcoal powder into small briquette. The rollers of roller

press charcoal briquette making machine supplier are made of 65Mn, which makes rollers have

long service time. The roller's shape can be oval, egg, square, round shape, pillow shape, etc.

Roller press charcoal briquette making machine supplier's raw material can be coal powder,

charcoal powder, mineral powder, iron powder, ore powder, coke powder, carbon powder, etc.

The production capacity of roller press charcoal powder shaping machine is huge, it can be 0.8

-30 tons per hour.

Raw material of roller press charcoal briquette making machine

1) Any kind coal powder, coal dust, coal slurry, coal waste, coking coal powder.

2) Any kind charcoal powder, charcoal dust, charcoal ash, etc.

3) Mineral powder, such as iron powder, cooper powder, aluminum powder, etc.

4) Ore powder, limestone powder, etc.

5) Chemical powder, like gypsum powder, etc.

6) Coke powder, carbon powder, carbon black powder, etc.

7) Kaolin powder, clay, slurry, etc.

8) Fertilizer powder.

9) Animinal excrement.

Type-3: Hydraulic shisha charcoal briquette making machine

If you are interested in this machine, please click the following photo!

 Shisha charcoal briquettes made by hydraulic shisha charcoal briquette making machine

 Introduction of hydraulic shisha charcoal briquette making machine

Hydraulic shisha charcoal briquette making machine is a popular charcoal powder shaping machine

in Middle East Countries. People use this machine to shape fine charcoal powder especially coconut

shell charcoal powder into small cube shape/ tablet shape/ round shape, etc. and then use dry shisha

charcoal briquettes for smoking. Because of high pressure, our final shisha charcoal briquettes are

in high density, perfect appearance, high hardness, etc. And the final shisha briquettes can be burned

2 hours without smoke and smell.

Type-4: Extruding type charcoal briquette making machine

If you are interested in this machine, please click the following photo!

 Final briquettes made by extruding type charcoal briquette making machine

Visitors came to test our charcoal briquette making machines

Loading site of charcoal briquette making machine

Payment, Packing and Delivery?

1 Payment :30% TT in advance, 70%6TT balance pay off before delivery.

2 Packing: The machine and wear parts will protected by  wooden box or as customers’ will.

3 Delivery time: For one set, the delivery time is 7-10 days, for 1-5 sets 20-25 days,

If you are interesed in our charcoal briquette making machine

Lantian Mechanical Plant:

Lantian Mechanical Plant was founded in 1980s. It is a professional briquette machine making factory.

Our main briquette forming machine includes honeycomb coal/charcoal briquette forming machine, roller

press coal/charcoal briquette forming machine, charcoal/coal extruder briquette forming machine, shisha

charcoal briquette forming machine, mineral powder briquette forming machine, dry powder briquette

forming machine, etc. Apart all kinds of briquette forming machine, we also produce other briquette

forming machine's assistant machines, such as crusher, dryer, carbonization furnace, brick machine,

mixer.
