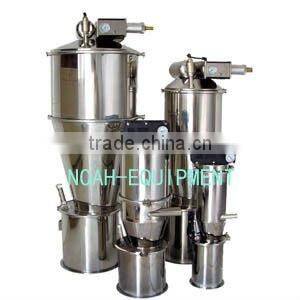

QVC-3 Fertilizer Vacuum Feeding Machine

Specifications

QVC-3 Fertilizer Vacuum Feeding Machine

Applictions:

The QVC-3 Fertilizer Vacuum Feeding Machine ( vacuum loading machine ) is a kind of vacuum transportation machine using pneumatic vacuum pump as vacuum resources. We can directly deliver the material from storing-material canister to obturation containers, such as mixing machine and humid method cuber machine. When turn the button of pneumatic valve to the position of "open", the air is compressed into vacuum pump, and produces vacuum, then the materials will automatically indraft mixing machine. After indrafting the materials, spin the pneumatic valve to the position of "closed", then the air in the mixing machine disappears. Meanwhile, the compressed air stored in gas bag blows the filter in reverse

Characteristic:
--- Using compressed air as primary energy sources
--- According with GMP standard
--- Solving the stratification of powder and granules
--- The filters made of Ti will never be jammed and be abraded
--- Eliminate the static electricity
--- Made of nontoxic and corrosion resistant materials
--- Leakage free capsule, to prevent cross contamination
--- Materials are not adhering to the inner surface of the conveyor
--- Intelligent control and high automation
--- Modular structure, easy to clean and dismantle
--- Small and light, easy to install
--- Low noise and free from vibration
--- Energy saving and low running cost

Main specifications:
Type: QVC-3
Transportation ability (kg/h): 1,500
Air pressure (Mpa): 0.4-0.6
Air consume (L/min): 540
