QVC-4 Powder Feeding Machine
- Shanghai
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Other, vacuum conveyer | |
| Material | Other, Stainless Steel, Stainless Steel | Material Feature | Fire Resistant | |
| Structure | Conveyor System | Load Capacity | 99% | |
| Place of Origin | Jiangsu, China | Brand Name | NOAH | |
| Model Number | QVC-4 | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

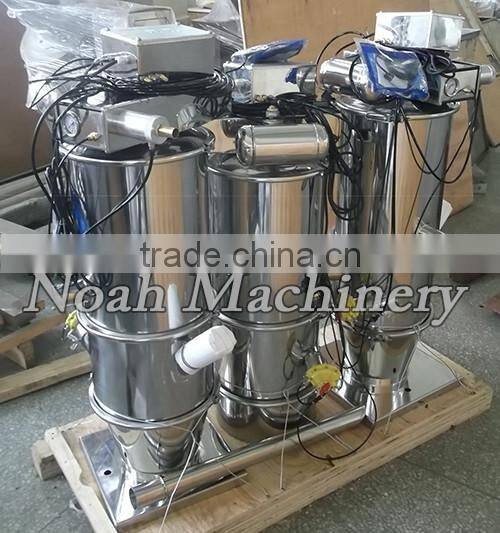

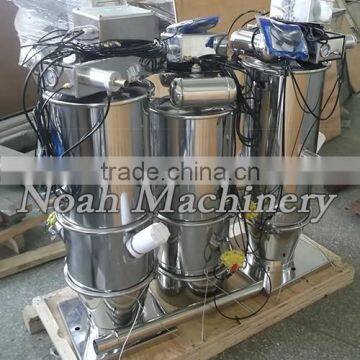

QVC Powder Feeding Machine
Our QVC Powder Feeding Machineor uses multi-stage ejector pump and metal filter. Our products are the third era products. We develop the vacuum conveyor follow the combination of the aerospace and international GMP criterion strictly. Our technology has achieved international advance level. Our products can solve the stratification of powder and granules, and eliminate the static electricity.
Characteristic:
---Using compressed air as primary energy sources
---According with GMP standard
---Solving the stratification of powder and granules
---The filters made of Ti will never be jammed and be abraded
---Eliminate the static electricity
---Made of nontoxic and corrosion resistant materials
---Leakage free capsule, to prevent cross contamination
---Intelligent control and high automation
---Materials are not adhering to the inner surface of the conveyor
---Modular structure, easy to clean and dismantle
---Small and light ,easy to install
---Low noise and free from vibration
---Energy saving and low running cost.
QVC Powder Feeding Machine consists of material container, pipeline, vacuum conveyor, control system and so on. The max distance to convey is 30m in height or 90m in length and the max conveying capability can reach 18 t/h.
Model and Parameter:
Types | transportation ability (kg/h) | air pressure | air consume | over size |
QVC-1 | 350 | 0.4-0.6 | 180 | dia.140*560 |
QVC-2 | 700 | 0.4-0.6 | 360 | dia.213*720 |
QVC-3 | 1500 | 0.4-0.6 | 720 | dia.290*850 |
QVC-4 | 3000 | 0.4-0.6 | 1440 | dia.420*1150 |
QVC-5 | 6000 | 0.4-0.6 | 2880 | dia.420*1150 |
Cases:
We will provide the high quality products and good service according to what our clients need, by which you can make sure there is no leakage of material and no explosion risk. Examples of how to choose a conveyor are given
Our Main Products are: Tablet press,Mixer,Crusher,Granulator,Dryer,Coater,Packing machine,Filling Machine,Miller and Pulverizer, Feeder,Oven, Deduster, Dust Collector, vibration sieves...
We also supply punch die sets and spare parts in standard or not.
The Headquarter is located in The beautiful,historical and cultural City-Yangzhou.
Our production,examinaton and supervision are strictly following the ISO9001 International Quality System and meet the CE Certification.
