QVC Pharmaceutical & Chemical Powder Vacuum Conveyors

The machine, QVC Pharmaceutical & Chemical Powder Vacuum conveyors is a kind of vacuum transportation machine using pneumatic vacuum pump as vacuum resources. We can directly deliver the material from storing-material canister to obturation containers, such as mixing machine and humid method cuber machine. When turn the button of pneumatic valve to the position of "open", the air is compressed into vacuum pump, and produces vacuum, then the materials will automatically indraft mixing machine. After indrafting the materials,
spin the pneumatic valve to the position of "closed", then the air in the mixing machine disappears. Meanwhile, the compressed air stored in gas bag blows the filter in reverse

Characteristic:
--- Using compressed air as primary energy sources
--- According with GMP standard
--- Solving the stratification of powder and granules
--- The filters made of Ti will never be jammed and be abraded
--- Eliminate the static electricity
--- Made of nontoxic and corrosion resistant materials
--- Leakage free capsule, to prevent cross contamination
--- Materials are not adhering to the inner surface of the conveyor
--- Intelligent control and high automation
--- Modular structure, easy to clean and dismantle
--- Small and light, easy to install
--- Low noise and free from vibration
--- Energy saving and low running cost
QVC conveying system consist of material container, pipeline, vacuum conveyor, control system and so on. The max distance to convey is 30m in height or 90m in length and the max conveying capability can reach 18 t/h.

Types	transportation ability (kg/h)	air pressure (Mpa)	air consume (l/min)	over size (mm)
QVC-1	350	0.4-0.6	180	dia.140*560
QVC-2	700	0.4-0.6	360	dia.213*720
QVC-3	1500	0.4-0.6	720	dia.290*850
QVC-4	3000	0.4-0.6	1440	dia.420*1150
QVC-5	6000	0.4-0.6	2880	dia.420*1150



Cases:
We will provide the high quality products and good service according to what our clients need, by which you can make sure there is no leakage of material and no explosion risk. Examples of how to choose a conveyor are given.













4.Vacuum conveying system:

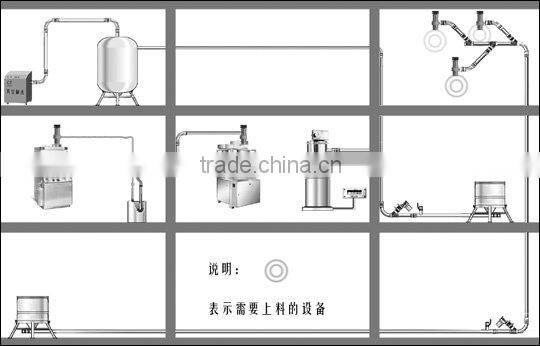

With vacuum systems, material can be sucked from several pick-up points and collected at one receiving point. This is the opposite of what happens in positive-pressure systems. The system has a lot of advantage, such as, No leakage of material, simple to install,
dustless, easy to control and so on. The pollution for entironment of the system can reach to zero. And the system follow the GMP standard.
