GS Series Material Screw Loading Machine
- Shenzhen / Shanghai/Ningbo
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Other, Screw Conveyor, Screw Conveyor | |
| Material | Other, Stainless Steel, Stainless steel | Material Feature | Fire Resistant | |
| Structure | Inclining Conveyor | Load Capacity | 3m3 /h, 5m3 /h | |
| Place of Origin | China | Brand Name | NOAH | |
| Model Number | GS Series | Voltage | 380V | |
| Power(W) | 930W/1700W | Dimension(L*W*H) | 860 * 900* 1100 mm | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

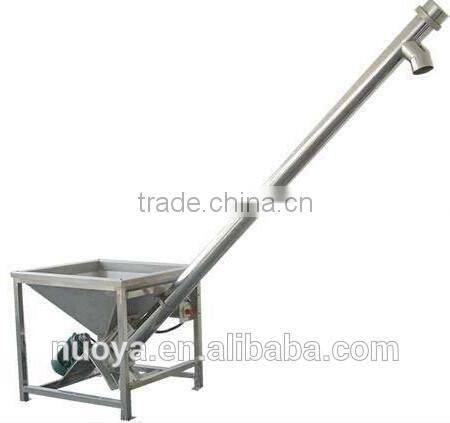

GS Series Material Screw Loading Machine
Brief instruction :
The GS Series Material Screw Loading Machine is suitable for multiple powdery product , working together with kinds of packing machine, the product feeding of the conveyor is controlled to retain the product level in the product cabinet . And the machine can be used independently . All parts are make of stainless steel except the electromotor , bearing and support frame .
Characteristic :
1.Using double electromotors: feeding motor & vibrating motor , separately controlled .
2.Product funnel is design to be adjustably vibratile , which lead to avoid product blocking and improve the adaptation of different products.
3. Product funnel can separate from the tube for easy assembly.
4. Special anti-dust design to protect bearing from dust.
5. In order to convenience machine cleaning , following functions are added in : auger can reverse for emptying the tube, product discharge gate is mounted in the bottom of the funnel , auger can be disassemblied for washing.
Specification :
Model | GS-A1 | GS-A2 |
Capacity | 3m3 /h | 5m3 /h |
Cabinet Cubage | 230L | 230L |
Conveyor Height | 1.8m (other height optional) | 1.8m (other height optional) |
Motor Power | 930W | 1700W |
Power | 380V / 50-60Hz | 380V / 50-60Hz |
Weight | 130kg | 160kg |
Cabinet Dimension | 860 * 900* 1100 mm | 860 * 900* 1100 mm |
