Multi-function Intermediate Frequency Coating Machine
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | UBU | |
| Model Number | OEM | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Name
Multi-function intermediate frequency coating machine
Product Profile
The product is applicable to coating various films (metal films, alloy films, chemical films, super hardness wear-resistant films, anti-corrosion films and decoration films). Gold, silver, black, red, blue, green and other colors are available. Combined with magnetron sputtering technology, it can coating multilayer films. Applies to hardware tool, glass crafts, ceramic crafts etc. such as watches, metal outer covering, sanitary ware, mold, electronic products, crystal glass, eyeglass frame, tableware, knives and so on. In recent years, electric arc ion coating technology has been greatly developed, from the original single arc source to the column arc and large flat arc etc. Combined with the technology of intermediate frequency(IF) magnetron sputtering makes it more popular.
Technical Specification
Type | ZP-700 | ZP-900 | ZP-1000 | ZP-1250 | ZP-1400 | ZP-1600 | ||||||
Vacuum chamber size | 700×H 900mm | 900×H 1100mm | 1000×H 1200mm | 1250×H 1350mm | 1400×H 1600mm | 1600×H 1800mm | ||||||
Power supply | Intermediate frequency power supply; pulse bias power supply; arc power supply | |||||||||||
Vacuum chamber structure | Vertical single/double door, rear vacuum acquisition system | |||||||||||
Vacuum chamber material | SUS-304 superior stainless steel | |||||||||||
Ultimate vacuum | 8.0×10-4Pa | 8.0×10-4Pa | 8.0×10-4Pa | 8.0×10-4Pa | 8.0×10-4Pa | 8.0×10-4Pa | ||||||
Pumping speed | From 1 atm to 6.7×10-3Pa take 8~15min (room temperature, clean and unload) | |||||||||||
Vacuum system | Diffusion pump + roots pump + rotary vane pump + holding pump (can be adjusted by requested) | |||||||||||
Magnetron target | Type | Cylindrical magnetron target, twin magnetron opposite target | ||||||||||
Number | Equipped by different coating processing or by user’s requested. | |||||||||||
Shelves rotation system | Planetary revolution and rotation, frequency control, upper and base rotation shelves, number of axes equipped by requested. | |||||||||||
Process gas | Mass flow controller (3-4 ways), manual or automatic processing gas systems | |||||||||||
Cooling system | Water-cooling system. Cooling water tower, industrial cooling water machine or deep water cooling system is needed to purchase separately. ( or supplied by user) | |||||||||||
Control system | Manual or PLC + touch screen | |||||||||||
Alarm and protection | Water pressure alarm, air pressure alarm, over current protection, execution on related protective measures and electrical interlock systems. | |||||||||||
Foot print | W3m×L3.5m | W3m×L3.5m | W3.5m×L5m | W3.5m×L5m | W4.5m×L6m | W5m×L6m | ||||||
Other technical data | Water pressure≥0.2MPa, water temperature≤25℃, air pressure 0.5-0.8MPa | |||||||||||
Remarks | Specific size can be designed by user’s requested. Customizable vacuum chamber size range: 500-3000mm, H: 500-3000mm. | |||||||||||

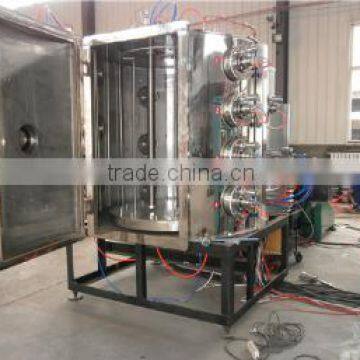

Equipments Pictures
