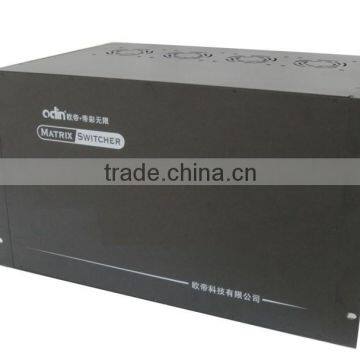

96x32 Matrix cctv
US$ 1 - 2
/ Unit
1 Unit(Min. Order)
- SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Odin | |
| Model Number | DC-MAX3636-H |
Product Description
Specifications
96x32 Matrix cctvResolution 1920*1080
Good quality
96x32 Matrix cctv
AV Matrix
Model: DC-MAX9632-A
1.No compression and decompression for the signal,poin-to-point design
3.Built-in 10 groups of adjustable plan,can switch any output in one seconds,Support switching random and rapidly
4. Automatic energy-saving design, automatically shut off the unused port
6. Support polling function
| Specifications | Model | DC-MAX9632-A |
| Description | AV Matrix | 96 inputs and 32 outputs |
INPUT | Port | Standard BNC,12 card slots, 96 way inputs |
| Resolution | 576 I,486 I | |
| EDID | Odin Standard Digital EDID | |
| Bandwidth | 20M | |
OUTPUT | Port | Standard BNC,4 card slots, 32 way inputs |
| Character overlay | Display real-time, camera titles, characters, etc. | |
| Bandwidth | 20M | |
CONTROL | Input | Standard RS232 input |
| Indicator | Power indicator is on,video matrix is working. | |
| Operating lever(optional) | Three-dimensional manually switch the keyboard | |
| Switch Time | Single channel <1ms,all channels <1S | |
| Plan | Support | |
| Software | MagicTunning Software | |
OTHER | Power | 220VAC/50Hz |
| Consumption | 30W | |
| Working Temperature | 0°C~+55°C | |
| Storage Temperature | 10%~90% | |
| Size | 445mm*223.25mm*222.5mm(19”5U) | |
| Weight | 5.0Kg | |
| Installation | Cabinets or Desktop installation | |
| Shock Resistance | 1M HIGH Cement floor (including packaging) | |
| ESD | 8KVDC |
