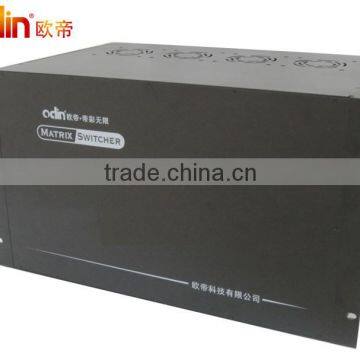

36 inputs 36 outputs HDMI digital matrix swticher

FOB Price

US$ 1 - 12,000 / Unit

1 Unit(Min. Order)

Port SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Specifications

36 inputs 36 outputs HDMI digital matrix swticher
Resolution 1080
Standard HDMI 1.3 Port
CE

36 inputs 36 outputs HDMI digital matrix swticher

Product Description

Model: DC-MAX3636-H

1.No compression and decompression for the signal,poin-to-point design
2.Automatic adjustment for the signal gain, HDMI signal with long distance transmission
3.Built-in 10 groups of adjustable plan,can switch any output in one seconds,Support switching random and rapidly
4. Automatic energy-saving design, automatically shut off the unused port
5. Support Resolution up to 1920*1200@60Hz
6. Support polling function

36 inputs 36 outputs HDMI digital matrix swticher

	Model	DC-MAX3636-H
INPUT	Port	Standard HDMI 1.3 Port
		4 inputs each card Max 9 cards,36 inputs
	Resolution	1920*1200@60Hz
	EDID	Odin Standard Digital EDID
	Signal adjustment	independent data adjustment for each port,the max length of receiving HDMI signal is 60 meters
	Bandwidth	Unipath 3.2G
OUTPUT	Port	Standard HDMI 1.3 Port
		4 outputs each card Max 9 cards,36 outputs
	Resolution	1920*1200@60Hz
	Bandwidth	Unipath 3.2G
CONTROL	Input	Standard RS232
	Output	Standard RS232
	Keyboard	None
	Software	MagicTunning Software
	Switch Time	singal channel <1ms, 10 channels <1S
	Plan	Max 10 Groups
OTHER	Power	220VAC/50Hz
	Consumption	300W
	Working Temperature	0°C~+55°C
	Storage Temperature	10%~90%
	Size	432.22mm280mm266.7mm(WxDxH 19'' 6U)
	Weight	10.0Kg
	Installation	Cabinets or Desktop installation
	Shock Resistance	1.2M HIGH Cement floor (including packaging)
	ESD	8KVDC (HDMI)

36 inputs 36 outputs HDMI digital matrix swticher

Packaging & Shipping

EPE with carton packing.
if you need wooden package,we also can offer to you
