Home > Products > Magnet Switch > Door proximity sensor,door open sensor,reed pipe door sensor

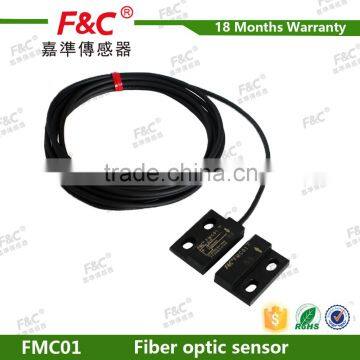

Door proximity sensor,door open sensor,reed pipe door sensor
- 1000 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
-
magnetic door contact switch,magnetic door reed switch,electric door switches
-
F&C Brand FMC01 contactless reed pipe door magnetic switch
-
magnetic proximity sensor,two wire door sensor,automatic door sensor
-
door sensor,electronic door sensor,door proximity sensor
-
Thru beam door magnetic switch FMC01
-
EN Standard NPN NO NC background suppression diffuse photoelectric switch sensor
Product Details
| Place of Origin | Hunan, China | Brand Name | F&C | |
| Model Number | FMC01 | Usage | Magnetic Sensor | |
| Theory | Current Sensor | Output | Switching Transducer |
Product Description
Product display
Specification
| Model | FMC01 | |||
| Output type | Normally open NPN | |||
| Sensing type | There reed tube contacts | |||
| Voltage range | 5~12VDC/AC | |||
| Maximun switching current | 100mA Max | |||
| Maximun contact capacity | 3.5W Max | |||
| Internal current capacity | no | |||
| Residual pressure drop | 2.5V Max.@10mA DC | |||
| Leakage current | no | |||
| Indicator | Red LED | |||
| cable | φ2.8,2C/oil resistant gray PVC | |||
| Maximum swithcing frequency | 1000Hz | |||
| Operating temperature range | -10°C~70°C | |||
| Impact resistance | 30G | |||
| Vibration resistance | 9G | |||
| Waterproof degree | IP67 | |||
| Protection circuit | no | |||
Dimension drawing
Door proximity sensor,door open sensor,reed pipe door sensor
Certifications
More product
Our services
1.Prompt reply to our customer, we have to reply all the email within 24hrs.
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
Enterprise profile
F&C main product include fiber optic amplifier , fiber optic sensor, fiber optic lens, proximity sensor, photoelectric sensor, label sensor, light curtain, laser alignment, pressure sensor,magnetic sensor, M8 M12 female connector, laser sensor, color sensor,rail power supply,solid state relay.
F&C Technology has been making continuous breakthrough in new technology and new material application,. Our Target is “What you need can be found in F&C Sensing Technology”.
Packaging&Shipping
1.We will ship our product aboard with standard export package.
2.For small Qty, We will Ship our product to you by express.
3.For mass production , We will ship our product to you by Air or sea.
Contact Us
- F&C Sensing Technology (Hunan) Co., Ltd.
- Contact namesam lee Chat Now
- Phone86-0769-22455638
- AddressB1 building, Luguyuyuan, No.27, Wenxuan Rd, High-tech district, Changsha city, Hunan province, China., Changsha, Hunan
