1500mm sensing NPN NO 12V dc Through-beam Mini photoelectric sensor
- 10000 Piece / Pieces per Month
- Guangzhou Shezhen
- Credit Card
You May Like
-
f&c 10mm NPN PNP 10-30V DC TOP INDUCTION photoelectric sensor for glass
-
HR series waterproof retro-reflective photoelectric sensor with reflector
-
F&C 100cm detection distance rectangular NPN NO diffuse photoelectric sensor
-
F&C 40cm detection distance rectangular diffuse photoelectric sensor
-
F&C 40cm NPN NO diffuse photo sensor
-
HR series long distance 10m sensing infrared12-24V dc through-beam photoelectric sensor
Product Details
Place of Origin | Hunan, China | Brand Name | F&C | |
Model Number | PJTI-S150N R2M | Usage | Position Sensor | |
Theory | Optical Sensor | Output | Switching Transducer |
Product Description
Dear customer,
Welcome to visit our products.
We are a professional manufacturer. Our factory gets involved in sensor industry in 2003.
Our main products are fiber optic amplifier, fiber optic tube, proximity switch, photoelectric switch, label sensor, light curtain, laser alignment, pressure sensor, magnetic switch, connector, laser sensor, color mark sensor, rail din power supply, solid state ray.
Hope you will find that is suitable for your products. If not,pls contact me
skype:lynn_liu123 ,we’ll find solutions for you.
Mini NPN NO Through-beam photoelectric sensor for guid rail
Feature of PJ Series Mini photoelectric sensor
1.AS small as Finger tip, suitable for narrow space installation
2. Through-beam, diffuse photoelectric switches for option
3. Have 1500mm detection distance and only with diameter 3mm light spot
4. 5VDC photoelectric switch can be customized.

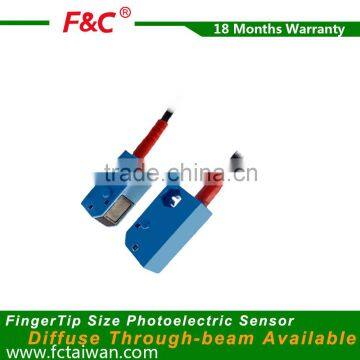

Product display
PJ Series Through-beam photoelectric switch sensor with 1500mm detection distance.
Product specification
Model | PJTI-S150N R2M |
Output Method | NPN NO |
Detection Type | Through-beam |
Standard Detection Object Size | diameter 6mm opaque objects |
Detection Distance | 1500mm |
Light Source | 940nm Infrared modulated light |
Operating Voltage | 12-24 VDC |
Response Time | 0.3ms Max. |
Current Consumption | 15mA Max. |
Load current | 100mA Max at 24 VDC |
Insulation Resistance | 20M Ohm Min. at 500 VDC |
Dielectric strength | 60 seconds at 1000VAC 60HZ |
Protection Degree | IP40 |
Operating Temperature | -10℃-50℃ (No Icing) |
Reverse Polarity Protection | Yes |
Short Circuit Protection | Yes |
Material | ABS |
Wire Method | diameter 3mm*2M/-3wires or -2 wires |
