small square 12-24V dc PNP retro-reflective photoelectric sensor with reflector
- 10000 Piece / Pieces per Month
- Guangzhou Shezhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
M18 NPN NO Through-beam waterpoof photoelectric sensor with CE
-
F&C Miniature photoelectric switch sensor
-
F&C Long distance through-beam photoelectric sensor
-
F&C voltage analog output diffuse photoelectric sensor
-
small square NPN diffuse photoelectric sensor for sales
-
FC-spx200 series photoelectirc sensors, U shape photoelectric sensors, small size, With Circuit Protected
Product Details
Place of Origin | Hunan, China | Brand Name | F&C | |
Model Number | CR-200P | Usage | Position Sensor | |
Theory | Optical Sensor | Output | Switching Transducer |
Product Description

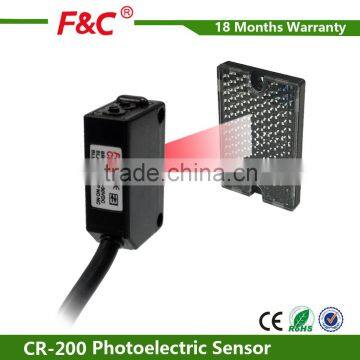

small square 12-24V dc PNP retro-reflective photoelectric sensor with reflector
Feature of CR series photoelectric sensor
1.Retro-reflective photoelectric sensor detection distance can reach 2
2.Through-beam photolectric sensor detection distance can reach 10
3.Mannual setting normal open or normal close funcation.
4.Good anti-interference ability.
Part Number and Output Method
Model | Output Status | Output Method | Operating Voltage | Sensing distance | Connecting method |
CR-200 | NO+NC | NPN | 10-30 VDC | 2M | Pre-wired 2m cable |
CR-200P | NO+NC | PNP | |||
CR-200/15D | NO+NC | NPN | Pre-wired 150mm cable and M8 connector | ||
CR-200P/15D | NO+NC | PNP |
Product Specification
small square 12-24V dc PNP retro-reflective photoelectric sensor with reflector
Model | CR-200P |
Output Method | PNP NO+NC |
Detection Type | Retro-reflective |
Standard Detection Objec | diameter 5mm opaque object |
Detection Distance | 2m |
Light Source | 630nm Red modulated light |
Operating Voltage | 12-24 VDC |
Response Time | 0.5ms Max. |
Protection Degree | IP66 |
Operating Temperature | -10℃-50℃ (No Icing) |
Reverse Polarity Protection | Yes |
Short Circuit Protection | Yes |
Material | ABS |
Wire Method | dia 4mm*2M/-4wires |
Weight | 107g |
Product display
Dimension Drawing
NPN NO+NC
PNP NO+NC
Before-sales Services
1.24-hours online service is available here. Once you have any questions, just contact us and our professional staff will reply very quickly. Email, Skype, Whatsapp or Online Message are acceptable.
2.Market information also will be provided. Since we are an experienced manufacturer of sensor, the market information about sensors will be offered as long as you need.
On-purchase Services:
1.The information of sensors that we provided is fully presented including product details, pictures, delivery and so on;
2.All your problems or worries will be solved quickly by our sales. It is worth noting that the prices of our sensors are quite negotiable. We have large discount for big quantity.
After-sales Services
1. The warranty period is 18 months.
2. If we send the wrong parts to you, free replacement will be available.
3. As for the installation of the parts, if you have any questions, do not hesitate to contact us at any time.
1.Why Choose F&C Sensing Technology?
Diversified product:F&C has over 5000 kind of sensors for option, so all the sensors you need can be bought from F&C at one time. It can save your shipment cost and your precious time to communicate with many suppliers at the same time.
Competitive price: As we believe the quality is the most important, all our key components are bought from first world class manufacturer. We will provide the best quality fiber optic amplifier, fiber optic sensor, inductive proximity sensor, photoelectric sensor, magnetic sensor etc. with reasonable price.
High quality: As a professional and reliable manufacturer in the field of sensors, we used first grade imported component to make sure our product has strong anti-interference and good performance. We are experienced in the Quality Inspection and Control. We do 100% burning-in test and do functional test for every sensors. Every product will be strictly inspected before shipment.
Rapid Shipment: Most of parts are in stock and once our customer places a firm order, we can arrange shipment within a very short period of time.
2.What kind of payment terms are available?
We prefer T/T and West Union in advance. We are a trade assurance supplier of alibaba. If you worried about the payment safety, you can handle with the payment through alibaba.
3. How about lead time?
The lead time is from 1-7days according to the quantity of the products.
Sample: 1 day
Mass production order:2-7days
4. What about your after-sales services?
Warranty period of all F&C product is 18 months.
If we send the wrong parts to you, free replacement will be available.
As for the installation of the parts, if you have any questions, do not hesitate to contact us at any time.
5. Do you accept OEM order?
Yes, actually we have many years OEM experience.
We will ship our product aboard with standard export package.
For small Qty, We will Ship our product to you by express.
For mass production , We will ship our product to you by Air or sea.
F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan factory in 2006 and Changsha factory in 2013.
F&C Sensing Technology is a leading sensor supplier in China .Our product has been sold to all over the world.Its products cover 14 series and 3000 specification. Our main product include Fiber Optic Sensor, Fiber Optic Amplifier, Fiber Optic Lens, Proximity Switch, Photoelectric switch,Label Sensor, Light Curtain, Laser Alignment, Pressure Sensor, Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply, Solid State Relay.
F&C Technology has been making continuous breakthrough in new technology and new application,. Our Target is “What you need can be found in F&C Sensing Technology”
