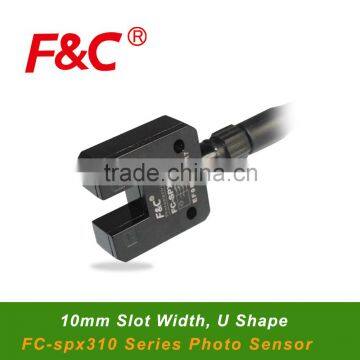

FC-spx310 (SU-B3) U Shape Photo Sensors Switches, 10mm sensing slot, NPN.NO.NC Or PNP.NO.NC Offered.

FOB Price

USD $10 - $30 / Piece

10 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Part Number:

FC-spx310 NPN.NO.NC, 4-wires

FC-spx310p PNP.NO.NC, 4-wires

PS. These sensors can be connector type which with 150mm cable, cable type with 2m cable.

Product Description

Emitting light	Red LED:630nm
Operating voltage	DC:10~30VDC±10%(Ripple P-P:10%Max)
Current consumption	15mA Max
Load current	100mA Max at DC 24V
Output type	N=NPN.NO P=PNP.NPN
Protection circuit	Reversed supply ciruit protection,short citcuit protection output
Response time	0.3 ms Max
Insulation resistance	20M Ωmin.(DC500V)
Voltage withstandatility	AC1000V 60Hz for 60 Sec
Operating temperature	-10°C~+45°C No freezing allowed
Ambient hunidity	35%~95%RH
Storage temperarure	-10°C~+55°C No freezing allowed
Storage hunidity	35%~95%RH
Material	ABS
Wiring method	φ2.6×2M/4-wires /φ4.2×2M/3-wires /φ4.2×2M/4-wires
Protection degree	IP66
Weight	Approx.18.5g

Diagram
